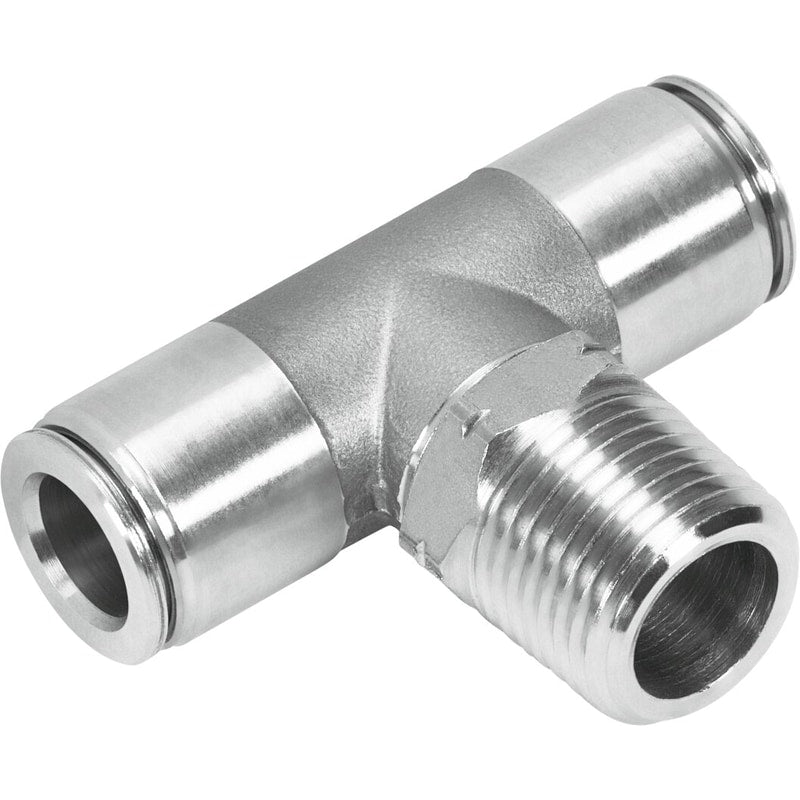

Push-in T-fitting
CRQST-1/4-1/4-U
565336
GTIN 4052568367596
Vendor Festo
- Pneumatic connection 1
- Male thread 1/4 NPTF
- Pneumatic connection 2
- for pneumatic tubing outer diameter 1/4"
- Ambient temperature
- -20 °C - 150 °C
- Nominal width
- 5.512 mm
- Operating pressure for entire temperature range
- -0.95 bar - 14 bar
Regular price
$102.63
Unit price
CRQST-1/4-1/4-U is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CRQST-1/4-1/4-U
Regular price
$102.63
Unit price
CRQST-1/4-1/4-U is backordered and will ship as soon as it is back in stock.
push-in T-fitting CRQST-1/4-1/4-U Size=Standard, Nominal size=0,217 ", Assembly position=Any, Container size=1, Design structure=Push/pull principle
| Fitting Type | Male Branch Tee |
|---|---|
| Size | Standard |
| Nominal size | 0.217 " |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-13.8 ... 203.1 Psi |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Corrosion resistance classification CRC | 4 - Very high corrosion stress |
| Ambient temperature | '-4 ... 302 °F |
| Max. tightening torque | 11.801 ft-lbf |
| Product weight | 1.185 oz |
| Usable wires | PFAN |
| connection 1 | Male thread NPTF1/4-18 |
| connection 2 | 1/4" outside diameter, for tubing |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Material housing | High alloy steel, non-corrosive |
| Material release ring | High alloy steel, non-corrosive |
| Material of tubing seal | FPM |
| Material of tube retaining claw | High alloy steel, non-corrosive |
