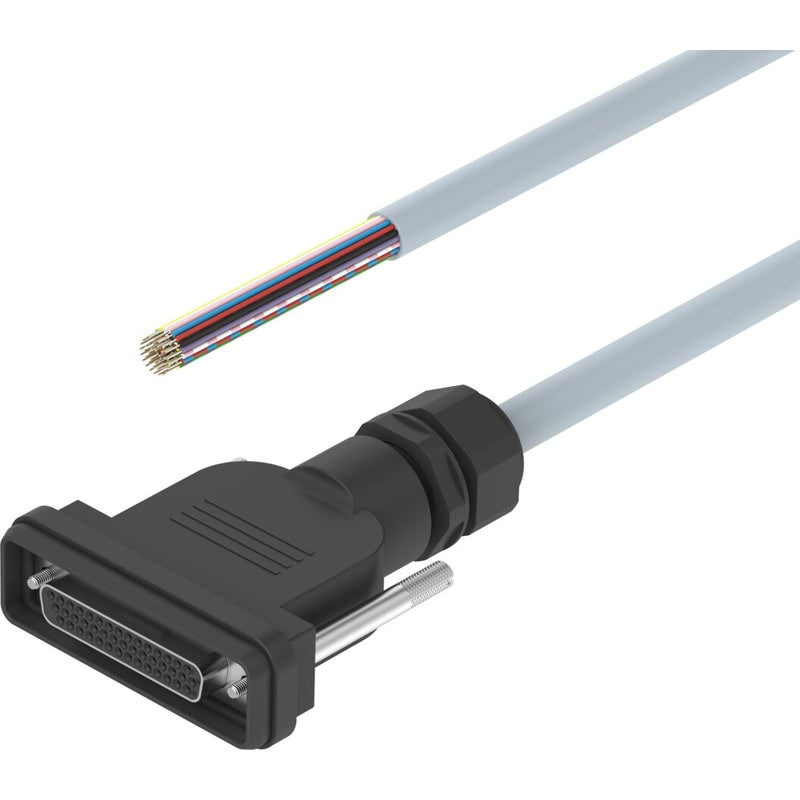

Connecting cable
NEBV-S1G44-K-2.5-N-LE39
565289
GTIN 4052568099985
Vendor Festo
- Cable length
- 2.5 m
Regular price
$141.42
Unit price
NEBV-S1G44-K-2.5-N-LE39 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBV-S1G44-K-2.5-N-LE39
Regular price
$141.42
Unit price
NEBV-S1G44-K-2.5-N-LE39 is backordered and will ship as soon as it is back in stock.
connecting cable NEBV-S1G44-K-2.5-N-LE39 Mounting type=4-40UNC, Assembly position=Any, Product weight=389 g, Electrical connection=(* Plug socket, * Sub-D, * 44-pin), Operating voltage range DC=<= 30 V
| Mounting type | 4-40UNC |
|---|---|
| Assembly position | Any |
| Product weight | 389 g |
| Electrical connection | Plug socketSub-D44-pin |
| Operating voltage range DC | <= 30 V |
| Acceptable current load at 40°C | 0.86 A |
| Cable length | 2.5 m |
| Cable attribute | For static applications |
| Min. cable bending radius | 95 mm |
| Cable diameter | 9.6 mm |
| Cable diameter tolerance | ± 0,5 mm |
| Cable structure | 40x0,14 |
| Protection class | IP65IP67in assembled condition |
