Plug

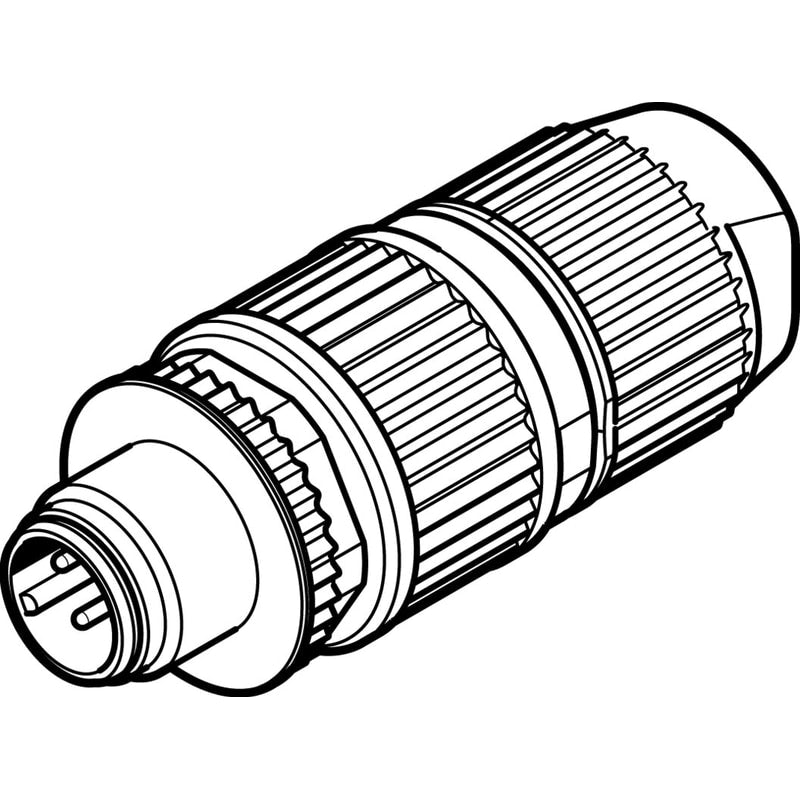

NECU-S-M12G4-HX-Q7
564947
GTIN 4052568057008
Vendor Festo
- Electrical connection
- M12x1 - Straight plug/insulation displacement connector
- Connection cross section
- 0.34 mm² - 0.75 mm²
- Degree of protection
- IP65 - IP67
Regular price
$26.19
Unit price
NECU-S-M12G4-HX-Q7 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NECU-S-M12G4-HX-Q7
Regular price
$26.19
Unit price
NECU-S-M12G4-HX-Q7 is backordered and will ship as soon as it is back in stock.
| Type code | NECU |
|---|---|
| Based on norm | EN 61984EN 61076-2-101 |
| Certification | c UL us - Recognized (OL) |
| Contact durability | 3 |
| Product weight | 33.3 g |
| Electrical connection | M12x14-pinA-codedStraight plug/insulation displacement connector |
| DC operating voltage range | 0 V ... 48 V |
| Operating voltage range AC | 0 V ... 48 V |
| Current rating at 40°C | 0.25 |
| Surge resistance | 0.8 kV |
| Approved cable diameter | 4.7 mm ... 6 mm |
| Individual wire diameter | ≥ 0.1 mm |
| Connection cross section | 0.34 mm² ... 0.75 mm² |
| Degree of protection | IP65IP67 |
| Ambient temperature | -25 °C ... 85 °C |
| Note on materials | Free of copper and PTFERoHS-compliant |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Housing material | Nickel-platedDie-cast zincPA |
| Seals material | FPMPUR |
| Material of pin contacts | Gold-plated |
| Permissible insulating sheath | PVC |
| Wire diameter | 1.6 mm ... 2 mm |
