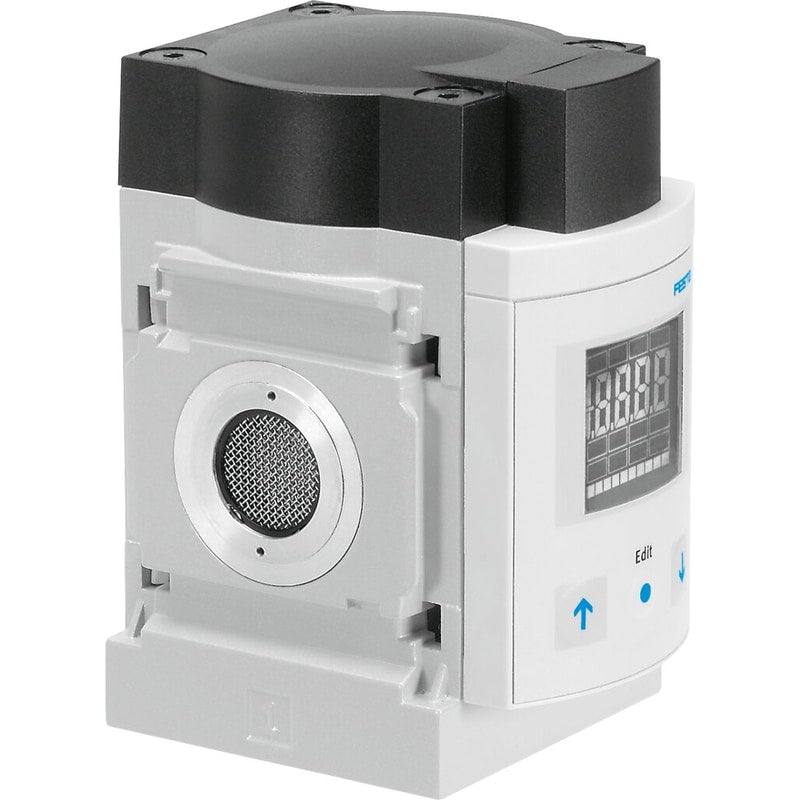

Flow sensor
SFAM-62-3000L-M-2SA-M12
564934
GTIN 4052568211974
Vendor Festo
- Flow measuring range end value
- 3000 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] - Nitrogen
- Operating pressure
- 16 bar
- Pneumatic connection
- Battery module
Regular price
$1,585.36
Unit price
SFAM-62-3000L-M-2SA-M12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SFAM-62-3000L-M-2SA-M12
Regular price
$1,585.36
Unit price
SFAM-62-3000L-M-2SA-M12 is backordered and will ship as soon as it is back in stock.
flow sensor SFAM-62-3000L-M-2SA-M12 For manifold mounting Authorisation=(* RCM Mark, * c UL us - Recognized (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=Conforms to RoHS, Measured variable=(* Flow rate , * Consumption), Direction of flow=(* Unidirectional, * From left to right)
| Authorisation | RCM Markc UL us - Recognized (OL) |
|---|---|
| CE mark (see declaration of conformity) | to EU directive for EMCin accordance with EU RoHS directive |
| KC mark | KC-EMV |
| Certificate issuing department | UL E322346 |
| Materials note | Conforms to RoHS |
| Measured variable | Flow rate Consumption |
| Direction of flow | UnidirectionalFrom left to right |
| Measuring principle | Thermal |
| Flow measurement range initial value | 30 l/min |
| Flow measurement range final value | 3,000 l/min |
| Operating pressure | 0 ... 16 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Nitrogen |
| Medium temperature | 0 ... 50 °C |
