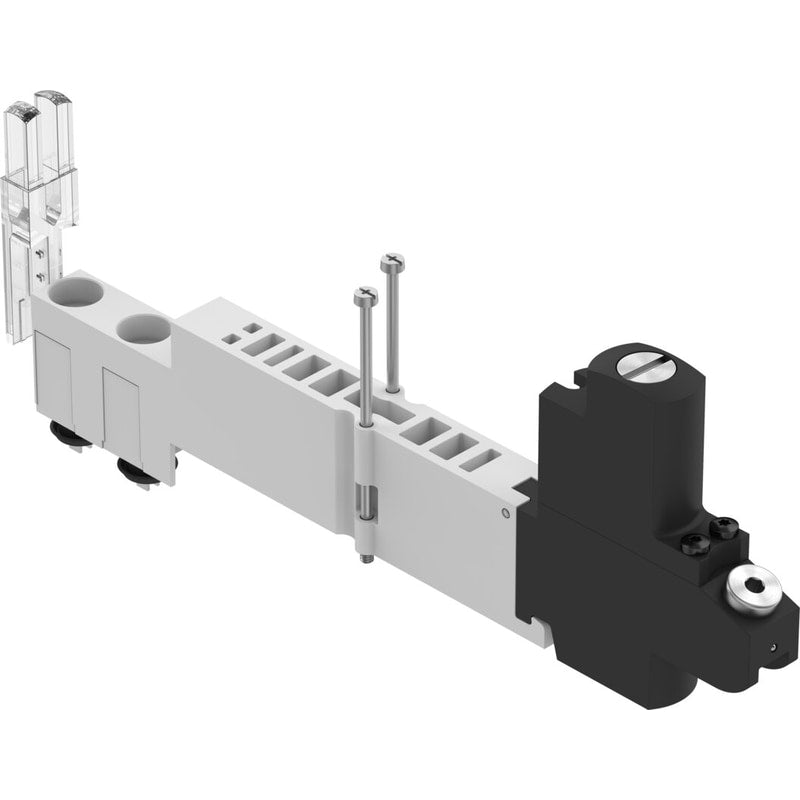

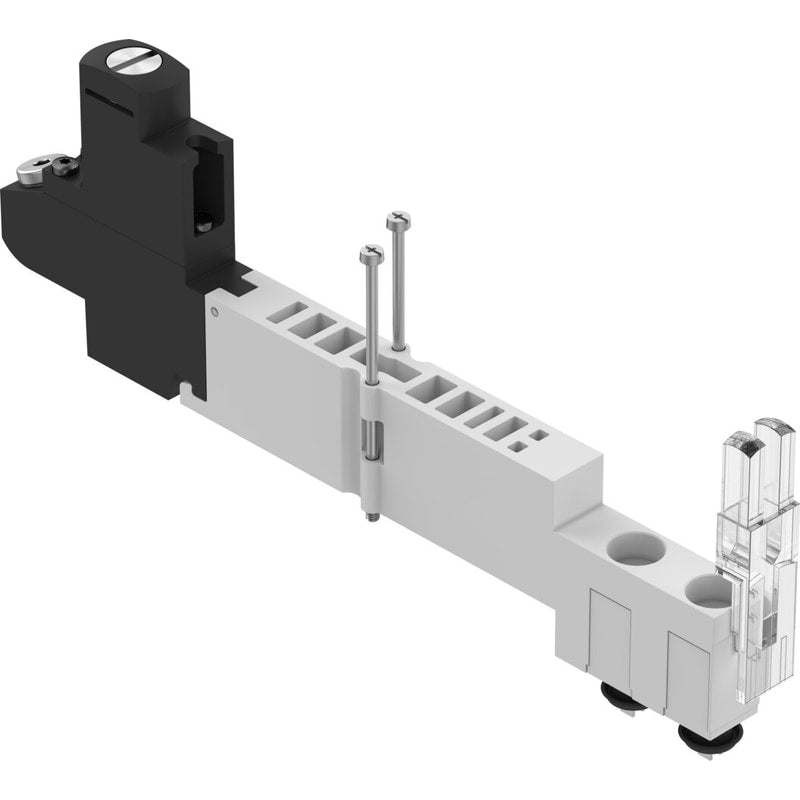

Regulator plate
VMPA1-B8-R3-M5-10
564910
GTIN 4052568211912
Vendor Festo
Regular price
$179.77
Unit price
VMPA1-B8-R3-M5-10 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPA1-B8-R3-M5-10
Regular price
$179.77
Unit price
VMPA1-B8-R3-M5-10 is backordered and will ship as soon as it is back in stock.

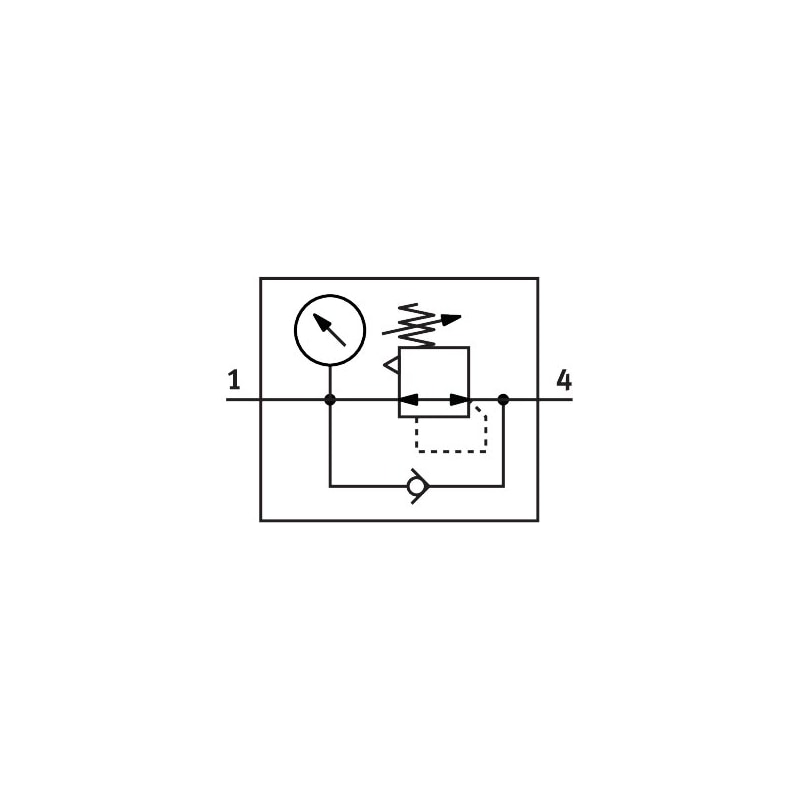

regulator plate VMPA1-B8-R3-M5-10 Width=10,5 mm, Assembly position=Any, Pneumatic vertical stacking=Pressure regulator for 4, Controller function=(* Output pressure constant, * with secondary exhaust), Pressure regulation range=2 - 8,5 bar
| Width | 10.5 mm |
|---|---|
| Assembly position | Any |
| Pneumatic vertical stacking | Pressure regulator for 4 |
| Controller function | Output pressure constantwith secondary exhaust |
| Pressure regulation range | 2 ... 8.5 bar |
| Inlet pressure 1 | 0.5 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Protection class | IP65to IEC 60529 |
| Ambient temperature | '-5 ... 50 °C |
| Max. tightening torque | 0.25 Nm |
| Product weight | 73.8 g |
