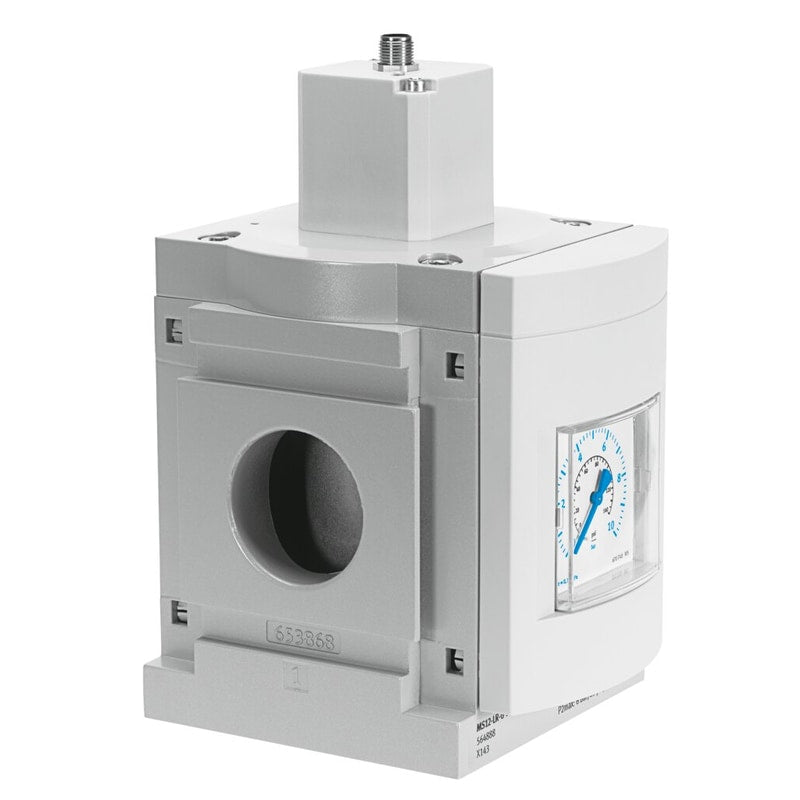

Pressure regulator
MS12-LR-G-PE6
564888
GTIN 4052568211882
Vendor Festo
- Pneumatic connection 1
- Sub-base
- Normal nominal flow rate (normalized to DIN 1343)
- 12000 l/min - 21000 l/min
- Pressure regulation range
- 0.15 bar - 6 bar
- Max. pressure hysteresis
- 0.04 bar
Regular price
$867.15
Unit price
Pressure regulator MS12-LR-G-PE6 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS12-LR-G-PE6
Regular price
$867.15
Unit price
Pressure regulator MS12-LR-G-PE6 is backordered and will ship as soon as it is back in stock.
pressure regulator MS12-LR-G-PE6 To control pressure in pneumatic control circuits. Size=12, Series=MS, Assembly position=Any, Design structure=Pilot actuated diaphragm regulator, Controller function=(* Output pressure constant, * with initial pressure compensation, * with secondary exhaust, * with return flow)
| Size | 12 |
|---|---|
| Series | MS |
| Assembly position | Any |
| Design structure | Pilot actuated diaphragm regulator |
| Controller function | Output pressure constantwith initial pressure compensationwith secondary exhaustwith return flow |
| Pressure gauge | with pressure gauge |
| Operating pressure | 1.15 ... 8 bar |
| Pressure regulation range | 0.15 ... 6 bar |
| Max. pressure hysteresis | 0.04 bar |
| Flow rate, secondary venting | <= 600 l/min |
| Standard nominal flow rate | 12,000 ... 21,000 l/min |
| Operating voltage range DC | 21.6 ... 26.4 V |
| Max. electrical power consumption | 3.6 W |
