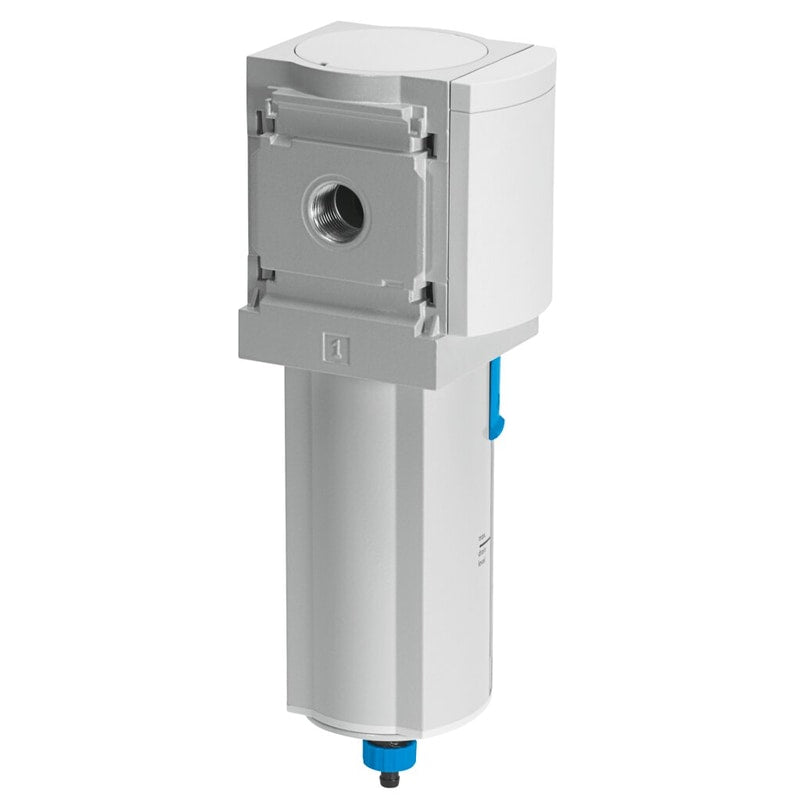

Water trap
MS6-LWS-1/4-U-V
564868
GTIN 4052568211851
Vendor Festo
- Pneumatic connection 1
- G1/4
- Normal nominal flow rate (normalized to DIN 1343)
- 2400 l/min
- Operating pressure
- 2 bar - 12 bar
Regular price
$297.08
Unit price
Water trap MS6-LWS-1/4-U-V is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS6-LWS-1/4-U-V
Regular price
$297.08
Unit price
Water trap MS6-LWS-1/4-U-V is backordered and will ship as soon as it is back in stock.
water separator MS6-LWS-1/4-U-V Condensate drain through fully automatic condensate drain valve. Size=6, Series=MS, Assembly position=Vertical +/- 5°, Condensate drain=fully automatic, Design structure=Centrifugal separator
| Size | 6 |
|---|---|
| Series | MS |
| Assembly position | Vertical +/- 5° |
| Condensate drain | fully automatic |
| Design structure | Centrifugal separator |
| Max. condensate volume | 38 ml |
| Bowl guard | integrated as metal shell |
| Degree of condensate separation | 0.99 |
| Operating pressure | 2 ... 12 bar |
| Standard nominal flow rate | 2,400 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Inert gases |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Air purity class at output | Compressed air in accordance with ISO8573-1:2010 [7:7:4] |
