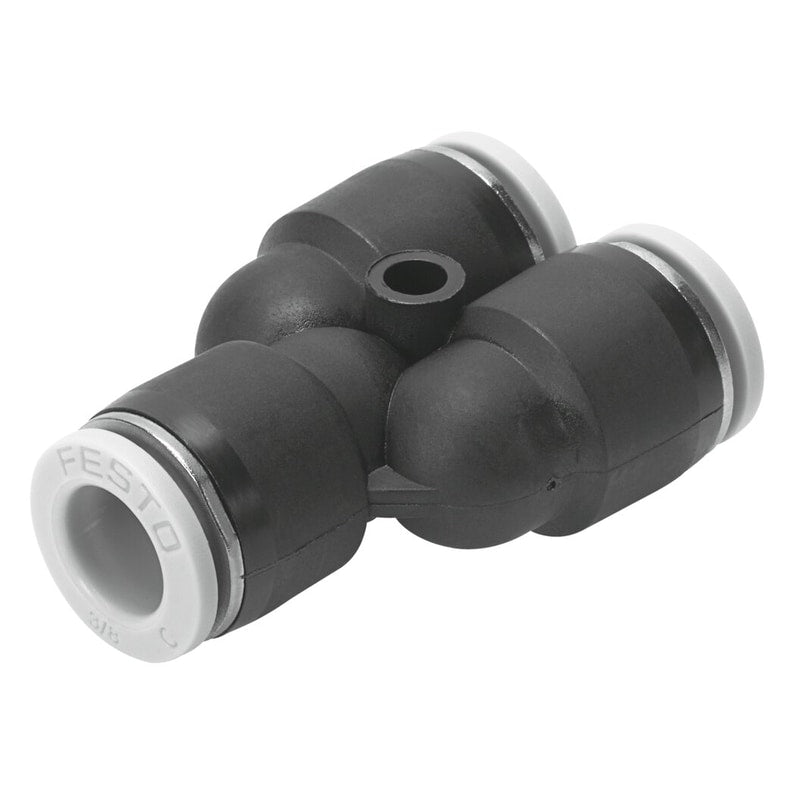

Push-in Y-connector
QBY-1/2T-U (Pack of 5)
564777
GTIN 4052568366629
Vendor Festo
- Pneumatic connection 1
- For pneumatic tubing outside diameter 1/2"
- Pneumatic connection 2
- for pneumatic tubing outside diameter 1/2"
- Ambient temperature
- 0 °C - 60 °C
- Nominal width
- 10.312 mm
Regular price
$9.63
Unit price
QBY-1/2T-U (Pack of 5) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QBY-1/2T-U (Pack of 5)
Regular price
$9.63
Unit price
QBY-1/2T-U (Pack of 5) is backordered and will ship as soon as it is back in stock.
push-in Y-connector QBY-1/2T-U Size=Standard, Nominal size=0,406 ", Assembly position=Any, Design structure=Push/pull principle, Operating pressure complete temperature range=-13,8 - 145 Psi
| Fitting Type | Union Y |
|---|---|
| Size | Standard |
| Nominal size | 0.406 " |
| Assembly position | Any |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-13.8 ... 145 Psi |
| Temperature dependent operating pressure | '-13.8 ... 145 Psi |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | 32 ... 140 °F |
| Product weight | 1.023 oz |
| connection 1 | 1/2" outside diameter, for tubing |
| connection 2 | 1/2" outside diameter, for tubing |
| Colour of release ring | Grey |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Material housing | PBT |
| Material release ring | POM |
| Material of tubing seal | NBR |
| Material of tube retaining claw | High alloy steel, non-corrosive |
