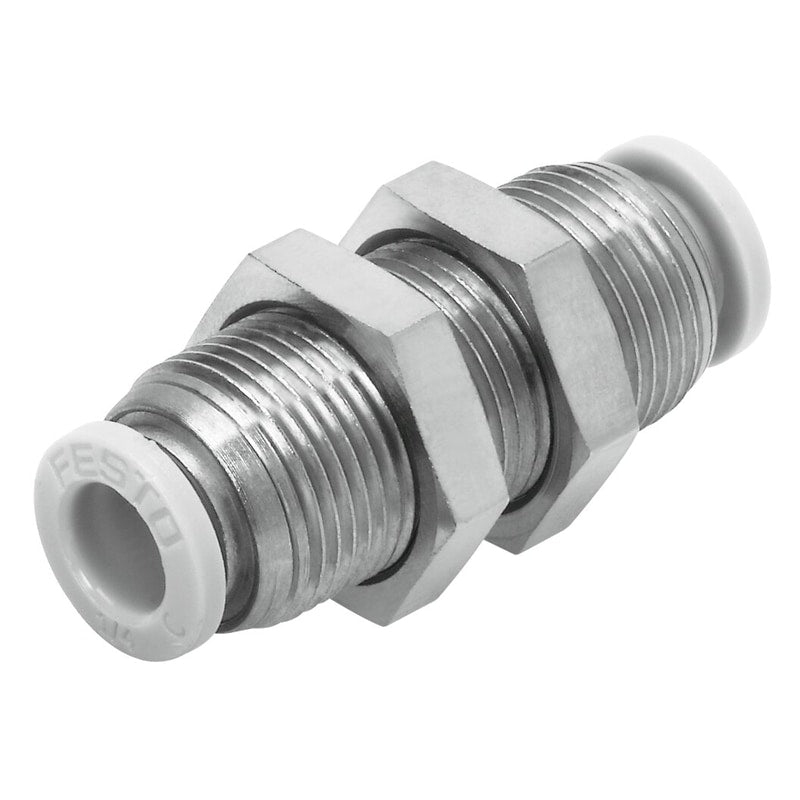

Push-in bulkhead connector
QBS-3/16T-U
564749
GTIN 4052568366353
Vendor Festo
- Pneumatic connection 1
- For pneumatic tubing outside diameter 3/16"
- Pneumatic connection 2
- for pneumatic tubing outside diameter 3/16"
- Ambient temperature
- 0 °C - 60 °C
- Nominal width
- 3.988 mm
Regular price
$4.80
Unit price
QBS-3/16T-U Push-in bulkhead connector is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QBS-3/16T-U
Regular price
$4.80
Unit price
QBS-3/16T-U Push-in bulkhead connector is backordered and will ship as soon as it is back in stock.
push-in bulkhead connector QBS-3/16T-U Size=Standard, Nominal size=0,157 ", Assembly position=Any, Design structure=Push/pull principle, Operating pressure complete temperature range=-13,8 - 145 Psi
| Fitting Type | Bulkhead Union |
|---|---|
| Size | Standard |
| Nominal size | 0.157 " |
| Assembly position | Any |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-13.8 ... 145 Psi |
| Temperature dependent operating pressure | '-13.8 ... 145 Psi |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | 32 ... 140 °F |
| Product weight | 0.691 oz |
| connection 1 | 3/16" outside diameter, for tubing |
| connection 2 | 3/16" outside diameter, for tubing |
| Colour of release ring | Grey |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Material housing | Nickel-plated brass |
| Material release ring | POM |
| Material of tubing seal | NBR |
| Material of tube retaining claw | High alloy steel, non-corrosive |
