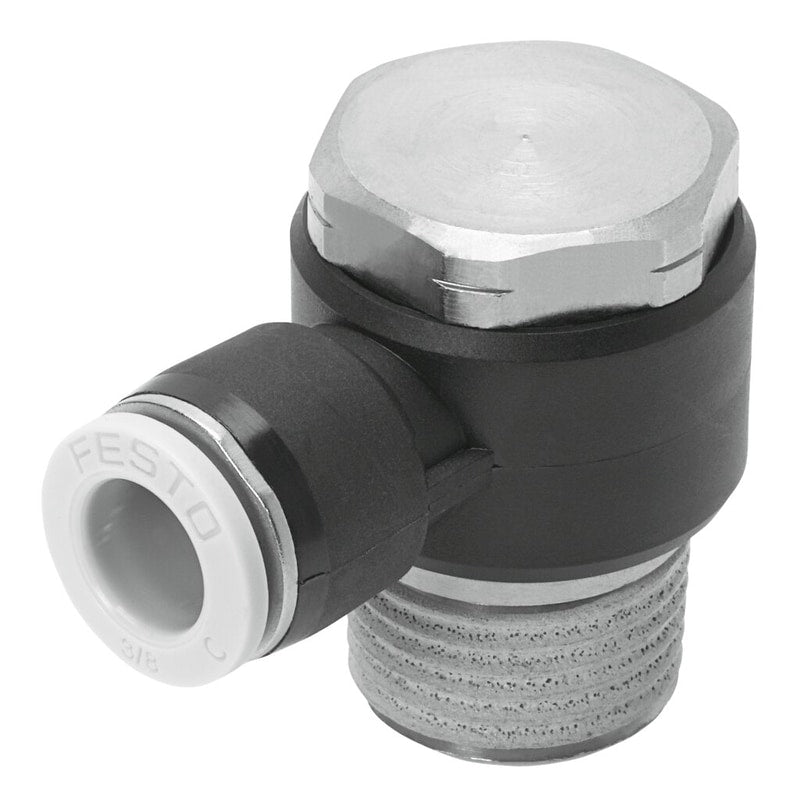

Push-in L-fitting
QBLV-1/4-5/32-U
564735
GTIN 4052568366216
Vendor Festo
- Pneumatic connection 1
- external thread 1/4 NPT
- Pneumatic connection 2
- for pneumatic tubing outside diameter 5/32"
- Ambient temperature
- 0 °C - 60 °C
- Nominal width
- 3.2 mm
Regular price
$4.68
Unit price
QBLV-1/4-5/32-U Push-in L-fitting is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QBLV-1/4-5/32-U
Regular price
$4.68
Unit price
QBLV-1/4-5/32-U Push-in L-fitting is backordered and will ship as soon as it is back in stock.
| Size | Standard |
|---|---|
| Nominal width | 3.2 mm |
| Type code | QBLV |
| Type of seal on screwed trunnion | Coating |
| Mounting position | Any |
| Design | Push-pull principle |
| Operating pressure for entire temperature range | -0.951 bar ... 9.997 bar |
| Temperature-dependent operating pressure | -0.951 bar ... 9.997 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Ambient temperature | 0 °C ... 60 °C |
| Max. tightening torque | 12 Nm |
| Product weight | 29.796 g |
| Pneumatic connection 1 | External thread NPT1/4-18 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 5/32" |
| Releasing ring color | Gray |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Housing material | PBTBrass, nickel-plated |
| Material of threaded seal | PTFE |
| Releasing ring material | POM |
| Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel |
