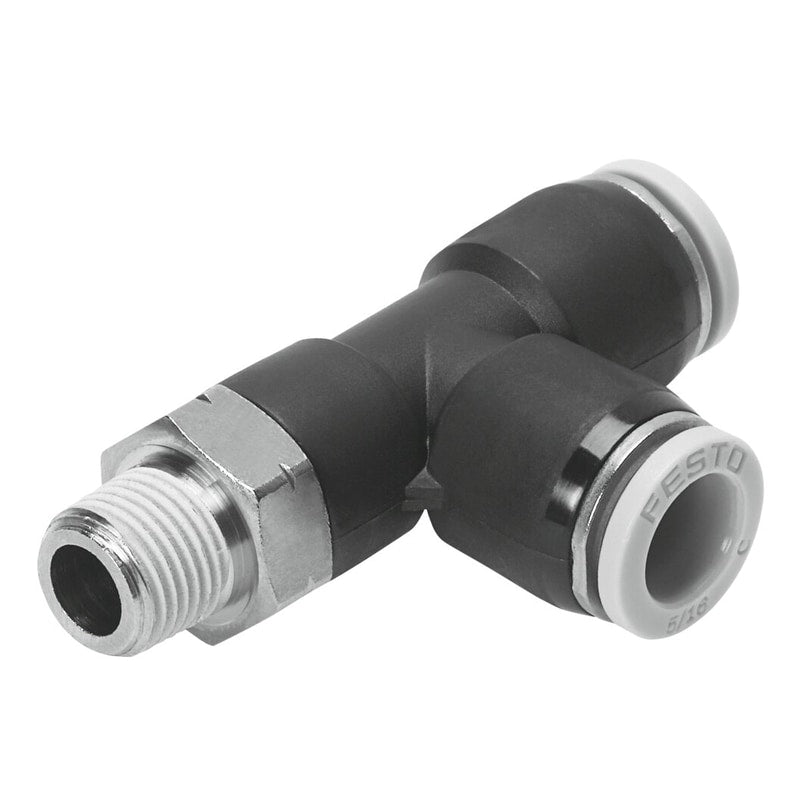

Push-in T-fitting
QBTL-10-32-UNF-3/16-U
564707
GTIN 4052568365936
Vendor Festo
- Pneumatic connection 1
- External thread 10-32 UNF-2A
- Pneumatic connection 2
- for pneumatic tubing outside diameter 3/16"
- Ambient temperature
- 0 °C - 60 °C
- Nominal width
- 2.997 mm
Regular price
$4.95
Unit price
QBTL-10-32-UNF-3/16-U Push-in T-fitting is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QBTL-10-32-UNF-3/16-U
Regular price
$4.95
Unit price
QBTL-10-32-UNF-3/16-U Push-in T-fitting is backordered and will ship as soon as it is back in stock.
| Size | Standard |
|---|---|
| Nominal width | 2.997 mm |
| Type code | QBTL |
| Type of seal on screwed trunnion | Sealing ring |
| Mounting position | Any |
| Design | Push-pull principle |
| Operating pressure for entire temperature range | -0.951 bar ... 9.997 bar |
| Temperature-dependent operating pressure | -0.951 bar ... 9.997 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Ambient temperature | 0 °C ... 60 °C |
| Max. tightening torque | 1.5 Nm |
| Product weight | 9.412 g |
| Pneumatic connection 1 | External thread 10-32 UNF-2A |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 3/16" |
| Releasing ring color | Gray |
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant |
| Housing material | Brass, nickel-plated PBT |
| Releasing ring material | POM |
| Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel |
