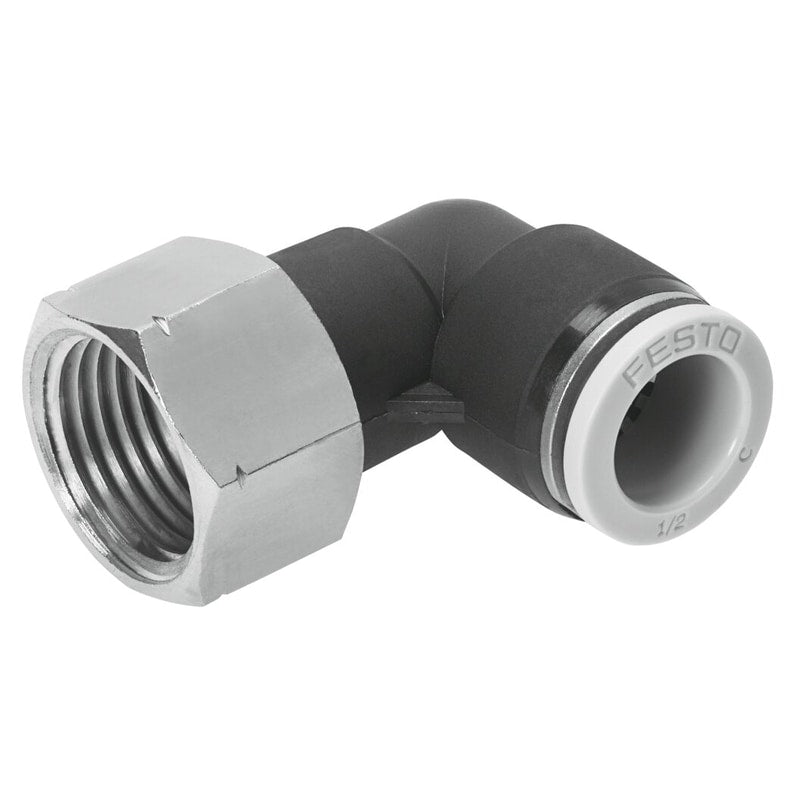

Push-in L-fitting
QBLF-1/8-3/16-U
564654
GTIN 4052568365400
Vendor Festo
- Pneumatic connection 1
- Internal thread 3/8 NPT
- Pneumatic connection 2
- for pneumatic tubing outside diameter 3/16"
- Ambient temperature
- 0 °C - 60 °C
- Nominal width
- 2.489 mm
Regular price
$4.75
Unit price
QBLF-1/8-3/16-U Push-in L-fitting is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QBLF-1/8-3/16-U
Regular price
$4.75
Unit price
QBLF-1/8-3/16-U Push-in L-fitting is backordered and will ship as soon as it is back in stock.
push-in L-fitting QBLF-1/8-3/16-U 360° orientable, internal thread with external hexagon. Size=Standard, Nominal size=0,098 ", Type of seal on screw-in stud=coating, Assembly position=Any, Design structure=Push/pull principle
| Fitting Type | Female Elbow |
|---|---|
| Size | Standard |
| Nominal size | 0.098 " |
| Type of seal on screw-in stud | coating |
| Assembly position | Any |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-13.8 ... 145 Psi |
| Temperature dependent operating pressure | '-13.8 ... 145 Psi |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | 32 ... 140 °F |
| Max. tightening torque | 5.163 ft-lbf |
| Product weight | 0.554 oz |
| connection 1 | Female thread NPT3/8-18 |
| connection 2 | 3/16" outside diameter, for tubing |
| Colour of release ring | Grey |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Material housing | Nickel-plated brassPBT |
| Material of threaded seal | PTFE |
