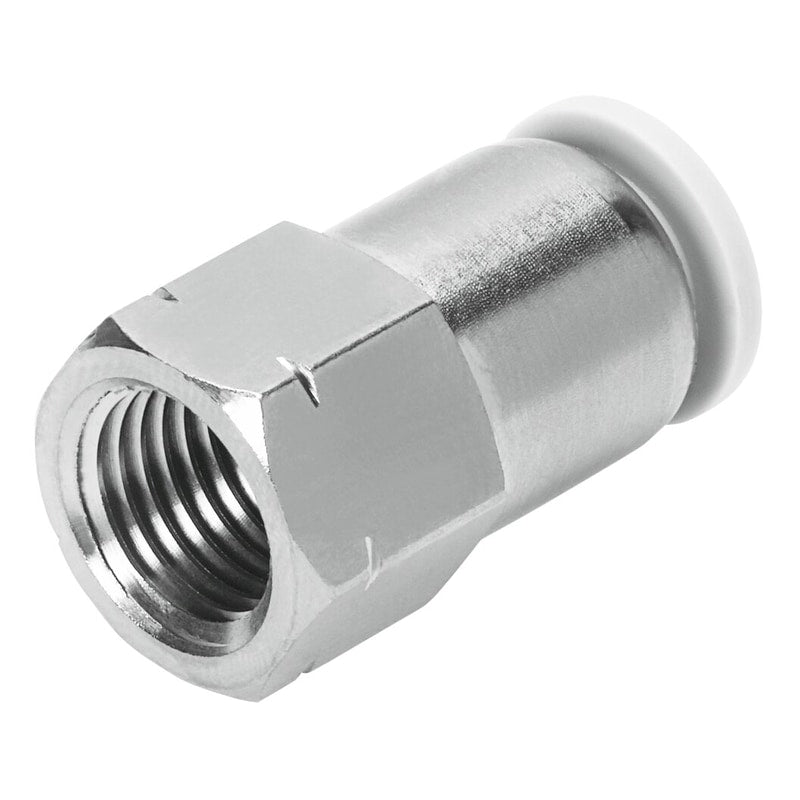

Push-in fitting
QBF-1/8-1/4-U (Pack of 10)
564638
GTIN 4052568365257
Vendor Festo
- Pneumatic connection 1
- Internal thread 1/8 NPT
- Pneumatic connection 2
- for pneumatic tubing outer diameter 1/4"
- Ambient temperature
- 0 °C - 60 °C
- Nominal width
- 5.004 mm
Regular price
$3.88
Unit price
QBF-1/8-1/4-U (Pack of 10) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QBF-1/8-1/4-U (Pack of 10)
Regular price
$3.88
Unit price
QBF-1/8-1/4-U (Pack of 10) is backordered and will ship as soon as it is back in stock.
push-in fitting QBF-1/8-1/4-U female thread with external hexagon. Size=Standard, Nominal size=0,197 ", Type of seal on screw-in stud=coating, Assembly position=Any, Design structure=Push/pull principle
| Fitting Type | Female Straight |
|---|---|
| Size | Standard |
| Nominal size | 0.197 " |
| Type of seal on screw-in stud | coating |
| Assembly position | Any |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-13.8 ... 145 Psi |
| Temperature dependent operating pressure | '-13.8 ... 145 Psi |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | 32 ... 140 °F |
| Max. tightening torque | 5.163 ft-lbf |
| Product weight | 0.663 oz |
| connection 1 | Female thread NPT1/8-27 |
| connection 2 | 1/4" outside diameter, for tubing |
| Colour of release ring | Grey |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Material housing | Nickel-plated brass |
| Material of threaded seal | PTFE |
