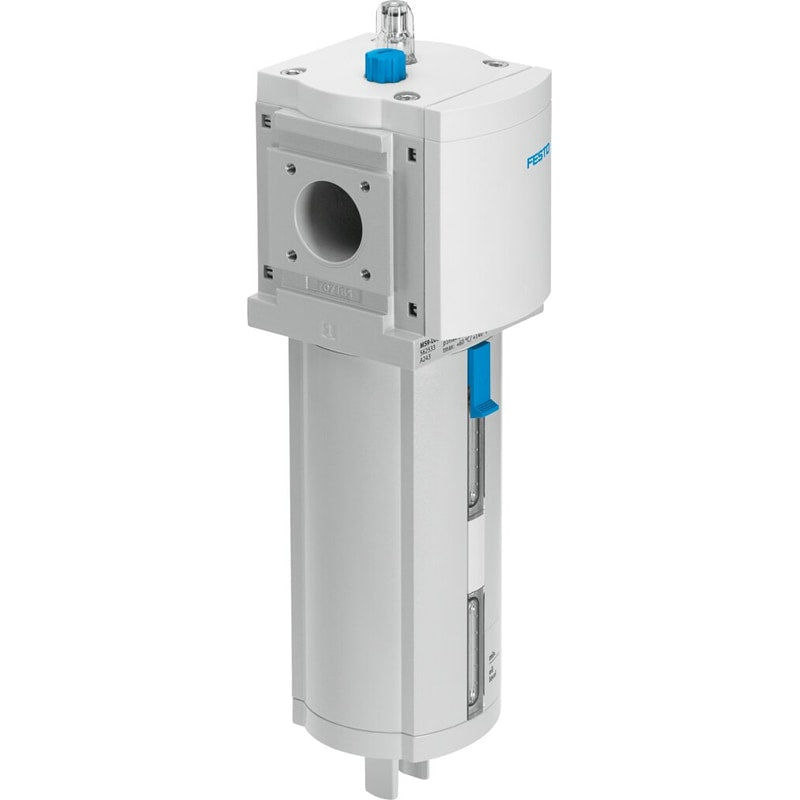

Air line lubricator
MS9-LOE-G-U
564144
GTIN 4052568211646
Vendor Festo
- Structural design
- Proportional standard oil mist lubricator
- Operating pressure
- 1 bar - 16 bar
- Minimum flow rate for lubricator function
- 100 l/min
Regular price
$173.40
Unit price
Air line lubricator MS9-LOE-G-U is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS9-LOE-G-U
Regular price
$173.40
Unit price
Air line lubricator MS9-LOE-G-U is backordered and will ship as soon as it is back in stock.
lubricator MS9-LOE-G-U Metal bowl, direction of flow: from left to right. Size=9, Series=MS, Assembly position=Vertical +/- 5°, Design structure=proportional standard mist lubricator, Max. oil capacity=490 ml
| Size | 9 |
|---|---|
| Series | MS |
| Assembly position | Vertical +/- 5° |
| Design structure | proportional standard mist lubricator |
| Max. oil capacity | 490 ml |
| Bowl guard | integrated as metal shell |
| Operating pressure | 1 ... 16 bar |
| Minimum flow rate for lubricator function | 100 l/min |
| Operating medium | Air quality class 5:7:- per DIN ISO 8573-1 |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Storage temperature | '-10 ... 60 °C |
| Medium temperature | '-10 ... 60 °C |
| Oil viscosity | ISO VG 32 |
