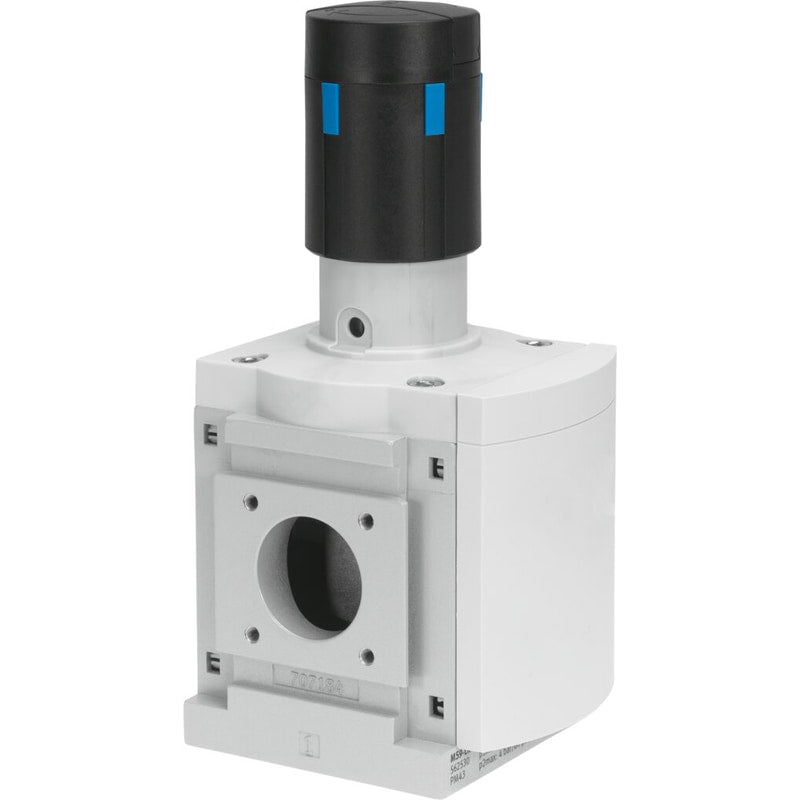

Pressure regulator
MS9-LR-G-D5-DI-AG-BAR-AS
564135
GTIN 4052568211585
Vendor Festo
- Pressure gauge
- with pressure gauge
- Operating pressure
- 1 bar - 20 bar
- Pressure regulation range
- 0.5 bar - 4 bar
- Max. pressure hysteresis
- 0.4 bar
Regular price
$184.49
Unit price
Pressure regulator MS9-LR-G-D5-DI-AG-BAR-AS is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS9-LR-G-D5-DI-AG-BAR-AS
Regular price
$184.49
Unit price
Pressure regulator MS9-LR-G-D5-DI-AG-BAR-AS is backordered and will ship as soon as it is back in stock.
pressure regulator MS9-LR-G-D5-DI-AG-BAR-AS 4 bar maximum output pressure, with pressure gauge, lockable regulator head, direction of flow: from left to right. Size=9, Series=MS, Actuator lock=with accessories, lockable, Assembly position=Any, Design structure=directly-controlled diaphragm regulator
| Size | 9 |
|---|---|
| Series | MS |
| Actuator lock | with accessories, lockable |
| Assembly position | Any |
| Design structure | directly-controlled diaphragm regulator |
| Controller function | Output pressure constantwith initial pressure compensationwith secondary exhaustwith return flow |
| Pressure gauge | with pressure gauge |
| Operating pressure | 1 ... 20 bar |
| Pressure regulation range | 0.5 ... 4 bar |
| Max. pressure hysteresis | 0.4 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
