Filter regulator
MS9-LFR-NG-D6-CUM-DI-AG-PSI-AS
564128
GTIN 4052568211554
Vendor Festo
- Pressure gauge
- with pressure gauge
- Operating pressure
- 1 bar - 20 bar
- Pressure regulation range
- 0.5 bar - 7 bar
- Grade of filtration
- 5 µm
Regular price
$248.87
Unit price
MS9-LFR-NG-D6-CUM-DI-AG-PSI-AS is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS9-LFR-NG-D6-CUM-DI-AG-PSI-AS
Regular price
$248.87
Unit price
MS9-LFR-NG-D6-CUM-DI-AG-PSI-AS is backordered and will ship as soon as it is back in stock.

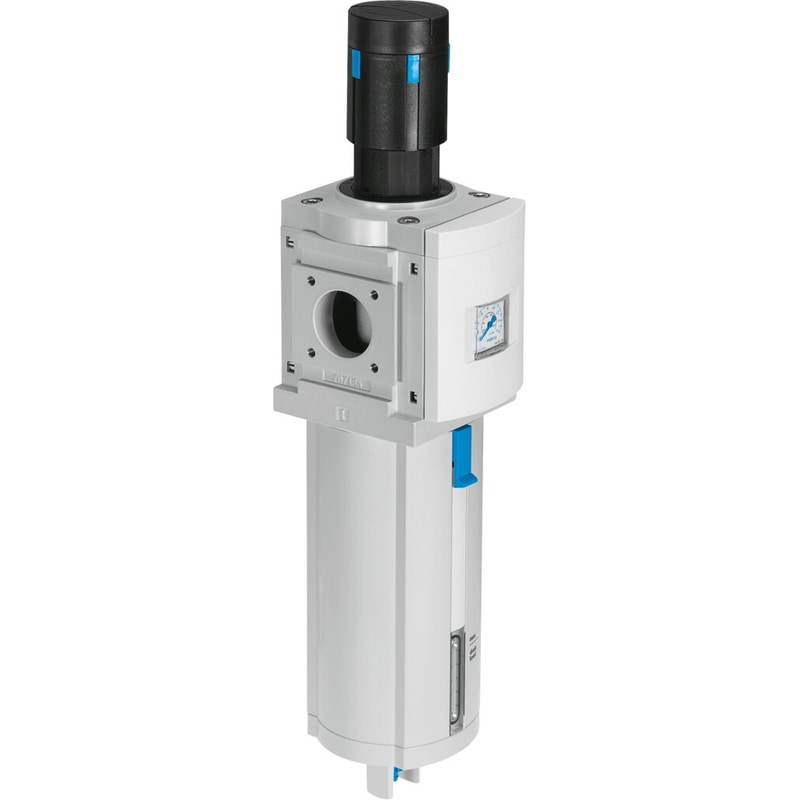

filter regulator MS9-LFR-NG-D6-CUM-DI-AG-PSI-AS Maximum output pressure 7 bar, 5 µm filter, with pressure gauge, lockable regulator head, metal bowl guard, manual condensate drain, flow direction from left to right. Size=9, Series=MS, Actuator lock=with accessories, lockable, Assembly position=Vertical +/- 5°, Grade of filtration=5 µm
| Size | 9 |
|---|---|
| Series | MS |
| Actuator lock | with accessories, lockable |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 5 µm |
| Condensate drain | manual rotary |
| Design structure | Directly actuated filter diaphragm regulator |
| Max. condensate volume | 220 ml |
| Controller function | Output pressure constantwith initial pressure compensationwith secondary exhaustwith return flow |
| Pressure gauge | with pressure gauge |
| Operating pressure | 1 ... 20 bar |
| Pressure regulation range | 0.5 ... 7 bar |
| Max. pressure hysteresis | 0.4 bar |
