Filter
MS9-LF-G-CUM
564108
GTIN 4052568211394
Vendor Festo
- Condensate drain
- Manually rotating
- Ambient temperature
- -10 °C - 60 °C
- Operating pressure
- 0 bar - 20 bar
- Grade of filtration
- 5 µm
Regular price
$161.47
Unit price
MS9-LF-G-CUM is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS9-LF-G-CUM
Regular price
$161.47
Unit price
MS9-LF-G-CUM is backordered and will ship as soon as it is back in stock.

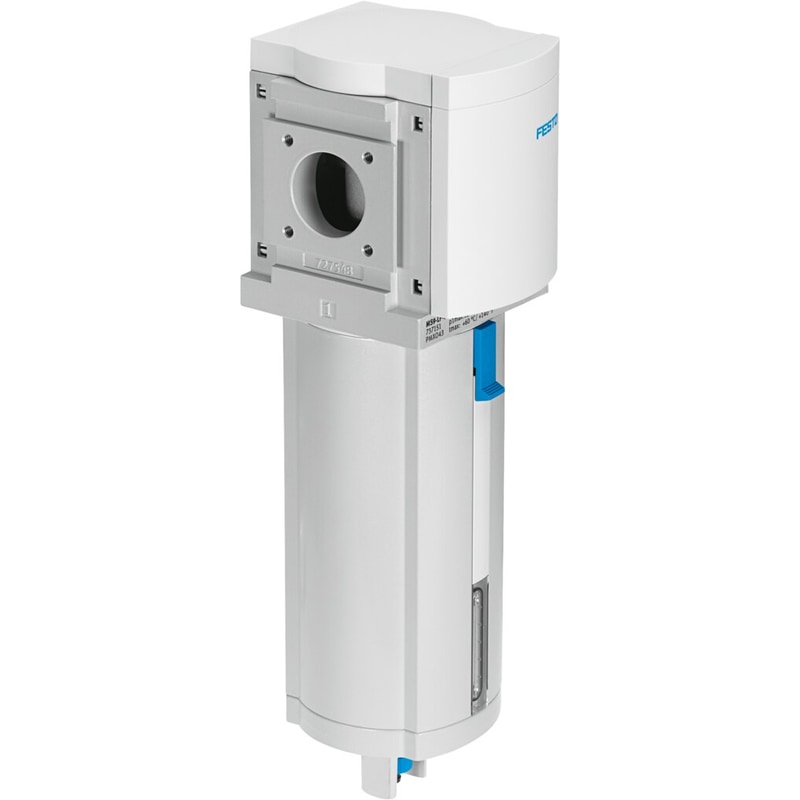

filter MS9-LF-G-CUM 5 µm filter, metal bowl, manual condensate drain, direction of flow: from left to right. Size=9, Series=MS, Assembly position=Vertical +/- 5°, Grade of filtration=5 µm, Condensate drain=manual rotary
| Size | 9 |
|---|---|
| Series | MS |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 5 µm |
| Condensate drain | manual rotary |
| Design structure | Sintered filter with centrifugal separator |
| Max. condensate volume | 220 ml |
| Operating pressure | 0 ... 20 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [-:9:-] |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Storage temperature | '-10 ... 60 °C |
| Air purity class at output | Compressed air in accordance with ISO8573-1:2010 [6:8:4] |
| Medium temperature | '-10 ... 60 °C |
