Filter
MS9-LF-G-EUV
564107
GTIN 4052568211387
Vendor Festo
- Condensate drain
- Fully automatic
- Ambient temperature
- -10 °C - 60 °C
- Operating pressure
- 2 bar - 12 bar
- Grade of filtration
- 40 µm
Regular price
$192.11
Unit price
MS9-LF-G-EUV is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS9-LF-G-EUV
Regular price
$192.11
Unit price
MS9-LF-G-EUV is backordered and will ship as soon as it is back in stock.

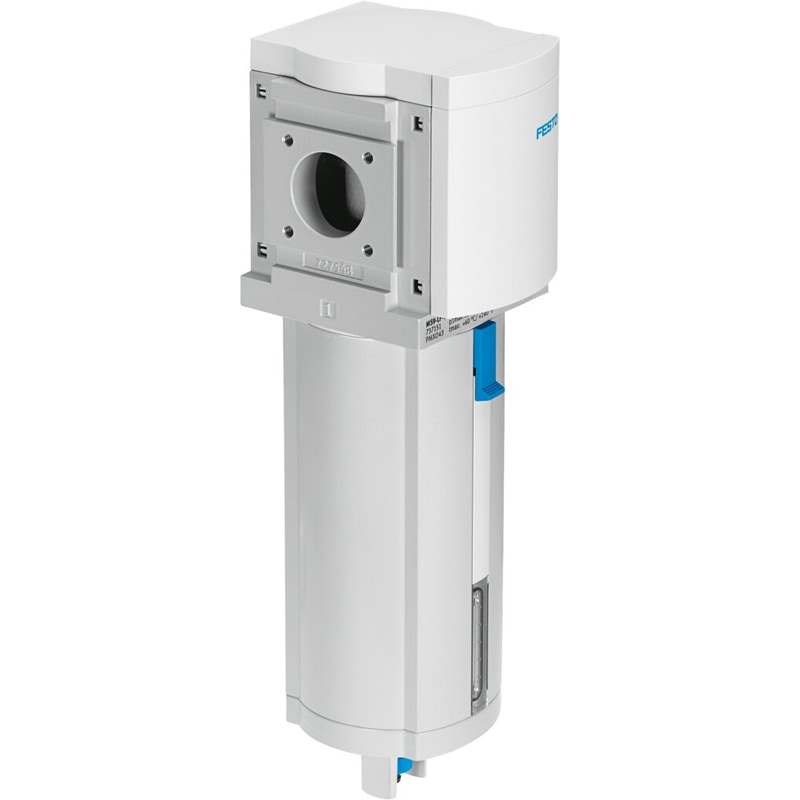

filter MS9-LF-G-EUV 40 µm filter, metal bowl guard, fully automatic condensate drain, flow direction from left to right. Size=9, Series=MS, Assembly position=Vertical +/- 5°, Grade of filtration=40 µm, Condensate drain=fully automatic
| Size | 9 |
|---|---|
| Series | MS |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 40 µm |
| Condensate drain | fully automatic |
| Design structure | Sintered filter with centrifugal separator |
| Max. condensate volume | 220 ml |
| Operating pressure | 2 ... 12 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:9:-] |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Storage temperature | 5 ... 60 °C |
| Air purity class at output | Compressed air in accordance with ISO8573-1:2010 [7:8:4] |
| Medium temperature | 5 ... 60 °C |
