Micro filter
MS9-LFM-G-AUV-DA
564050
GTIN 4052568211325
Vendor Festo
- Pneumatic connection 1
- Battery module
- Operating pressure
- 2 bar - 12 bar
- Ambient temperature
- 5 °C - 60 °C
- Grade of filtration
- 0.01 µm
Regular price
$401.10
Unit price
MS9-LFM-G-AUV-DA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS9-LFM-G-AUV-DA
Regular price
$401.10
Unit price
MS9-LFM-G-AUV-DA is backordered and will ship as soon as it is back in stock.

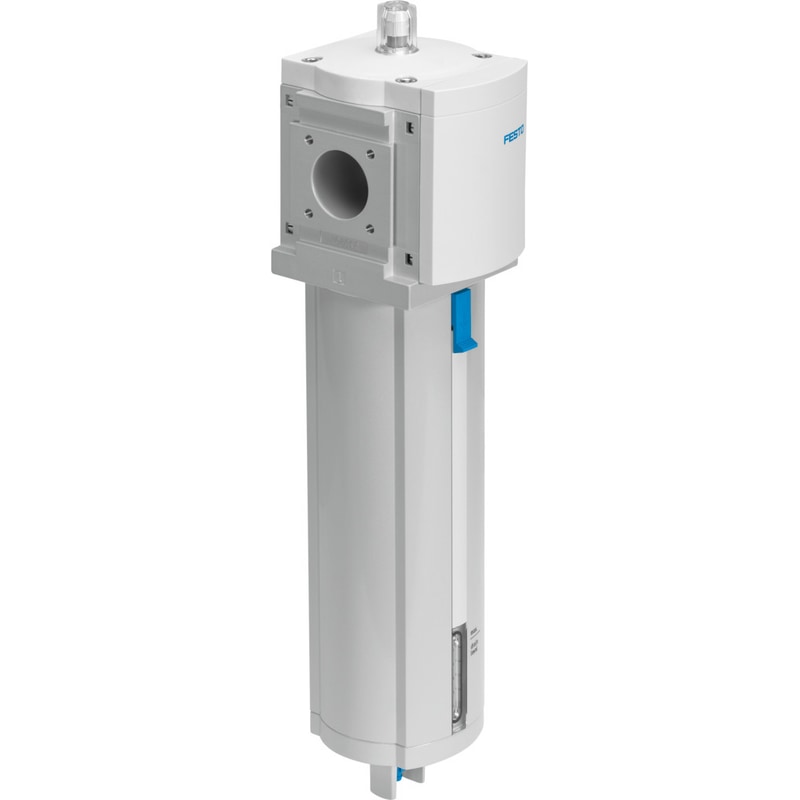

micro filter MS9-LFM-G-AUV-DA 0.01 µm filter, metal bowl guard, fully automatic condensate drain, with differential pressure indicator, flow direction from left to right. Series=MS, Size=9, Design structure=Fibre filter, Grade of filtration=0,01 µm, Condensate drain=(* fully automatic, * manual momentary-contact)
| Series | MS |
|---|---|
| Size | 9 |
| Design structure | Fibre filter |
| Grade of filtration | 0.01 µm |
| Condensate drain | fully automaticmanual momentary-contact |
| Operating pressure | 2 ... 12 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [6:8:4] |
| Air purity class at output | Compressed air in accordance with ISO8573-1:2010 [1:7:2] |
| Max. standard flow rate for air quality class | 6,500 l/min |
| Min. standard flow rate for air quality class | 325 l/min |
| Filter efficiency | 0.999999 |
| Max. condensate volume | 225 ml |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
