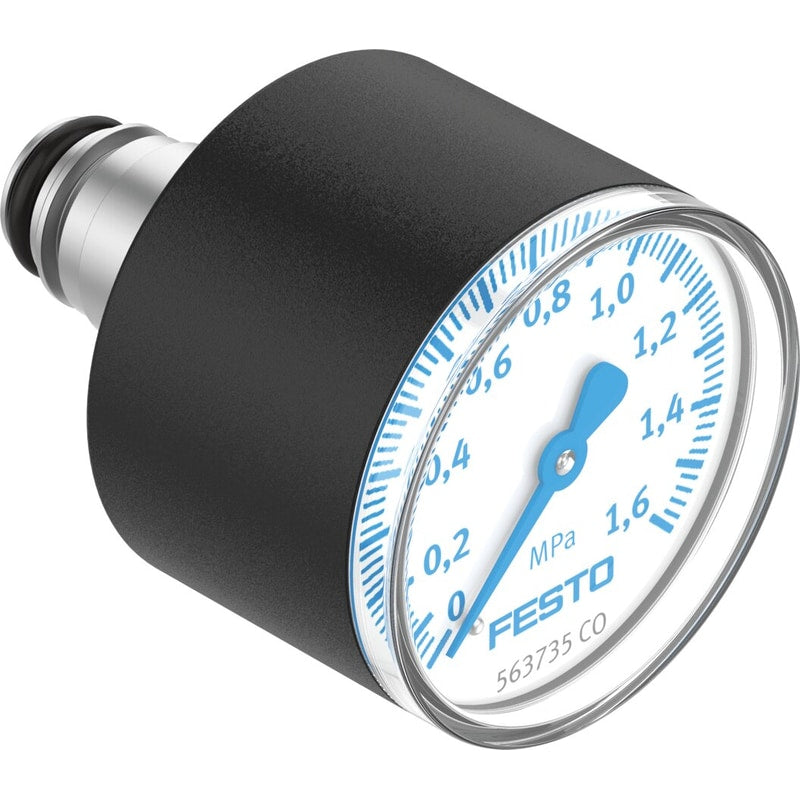

Pressure gauge
PAGN-26-1.6M-P10
563735
GTIN 4052568056896
Vendor Festo
- Type of mounting
- Line installation
- Pneumatic connection
- Cartridge 10 mm
- Measurement accuracy class
- 5
- Display range
- 0 MPa - 1.6 MPa
Regular price
$17.63
Unit price
Pressure gauge PAGN-26-1.6M-P10 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PAGN-26-1.6M-P10
Regular price
$17.63
Unit price
Pressure gauge PAGN-26-1.6M-P10 is backordered and will ship as soon as it is back in stock.
pressure gauge PAGN-26-1.6M-P10 With display unit in Mpa. Indicating range [MPa]=0 - 1,6 MPa, Conforms to standard=EN 837-1, Nominal size of pressure gauge=26, Design structure=Bourdon-tube pressure gauge, Mounting type=Line installation
| Indicating range [MPa] | 0 ... 1.6 MPa |
|---|---|
| Nominal size of pressure gauge | 26 |
| Design structure | Bourdon-tube pressure gauge |
| Mounting type | Line installation |
| Operating medium | Inert gasesNeutral fluids |
| Operating pressure | 0 ... 1.6 MPa |
| Alternating load factor | 0.66 |
| Measurement accuracy class | 4 |
| Protection class | IP43 |
| Medium temperature | '-20 ... 60 °C |
| Ambient temperature | '-20 ... 60 °C |
| Materials note | Conforms to RoHS |
| Position of connection | Rear side central |
