Sub-base
VABS-S7-S-G14
563396
GTIN 4052568210861
Vendor Festo
Regular price
$324.66
Unit price
VABS-S7-S-G14 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABS-S7-S-G14
Regular price
$324.66
Unit price
VABS-S7-S-G14 is backordered and will ship as soon as it is back in stock.

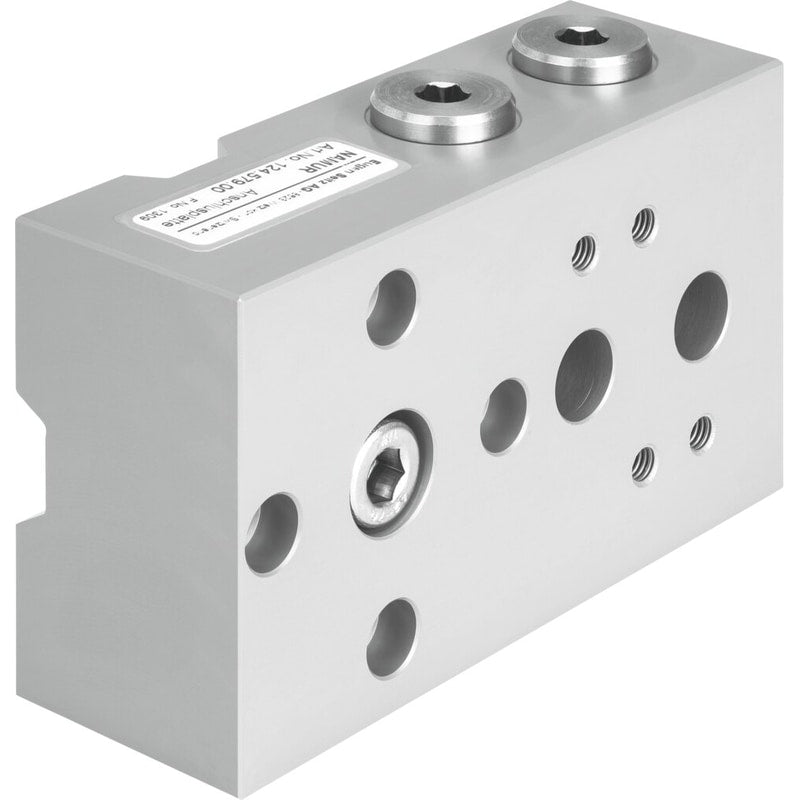

sub-base VABS-S7-S-G14 Assembly position=Any, Operating pressure=0 - 10 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Corrosion resistance classification CRC=4 - Very high corrosion stress, Protection class=IP65
| Assembly position | Any |
|---|---|
| Operating pressure | 0 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Corrosion resistance classification CRC | 4 - Very high corrosion stress |
| Protection class | IP65 |
| Mounting type | with through hole |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | Flange 1/4NAMUR port pattern |
| Pneumatic connection, port 3 | G1/4 |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Material seals | NBR |
| Material plate | Aluminium (Ematal coated) |
