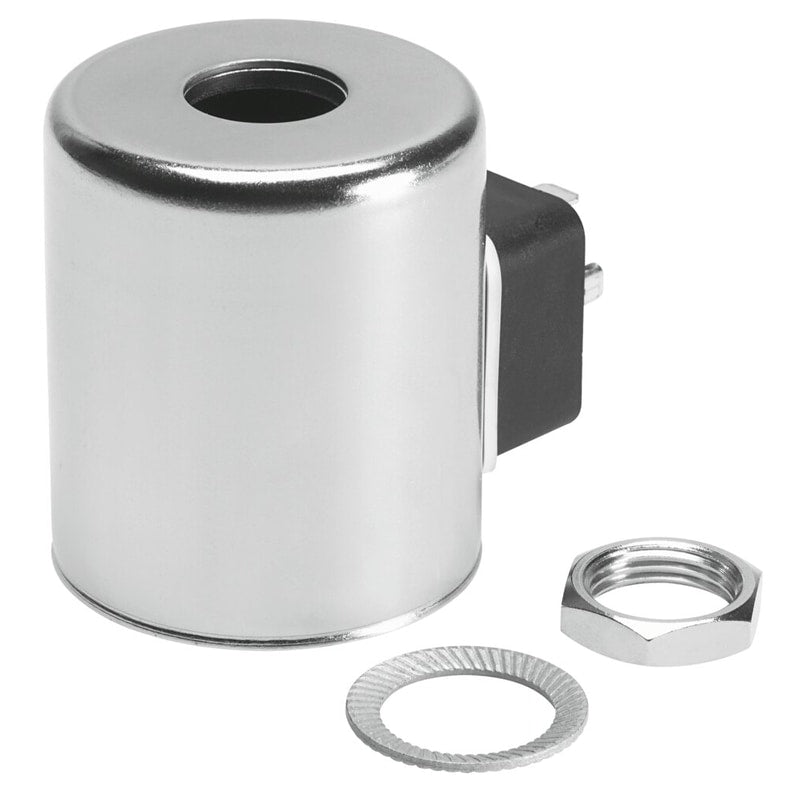

Solenoid coil
VACC-S18-35-A1-2A
562908
GTIN 4052568210533
Vendor Festo
- Electrical connection
- Form A - Plug - as per EN 175301-803
- Coil characteristics
- 110 V AC: 50/60 Hz, power 3.5 VA
- Degree of protection
- IP65
Regular price
$228.69
Unit price
VACC-S18-35-A1-2A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VACC-S18-35-A1-2A
Regular price
$228.69
Unit price
VACC-S18-35-A1-2A is backordered and will ship as soon as it is back in stock.
solenoid coil VACC-S18-35-A1-2A Solenoid coil, 18 mm shaft, type A connection pattern, to EN 175 301, 110 V AC/50-60 Hz Type of actuation=electrical, Assembly position=Any, Switching position indicator=No, Duty cycle=100%, Insulation class=H
| Type of actuation | electrical |
|---|---|
| Assembly position | Any |
| Switching position indicator | No |
| Duty cycle | 1 |
| Insulation class | H |
| Characteristic coil data | 110 V AC: 50/60 Hz, power: 3.5 VA |
| Permissible voltage fluctuation | '-15 % / +10 % |
| CE mark (see declaration of conformity) | to EU directive low-voltage devices |
| Corrosion resistance classification CRC | 4 - Very high corrosion stress |
| Protection class | IP65 |
| Ambient temperature | '-20 ... 60 °C |
| Product weight | 530 g |
| Electrical connection | Plugto EN 175301-803Plug pattern type A to EN 175301-803 |
