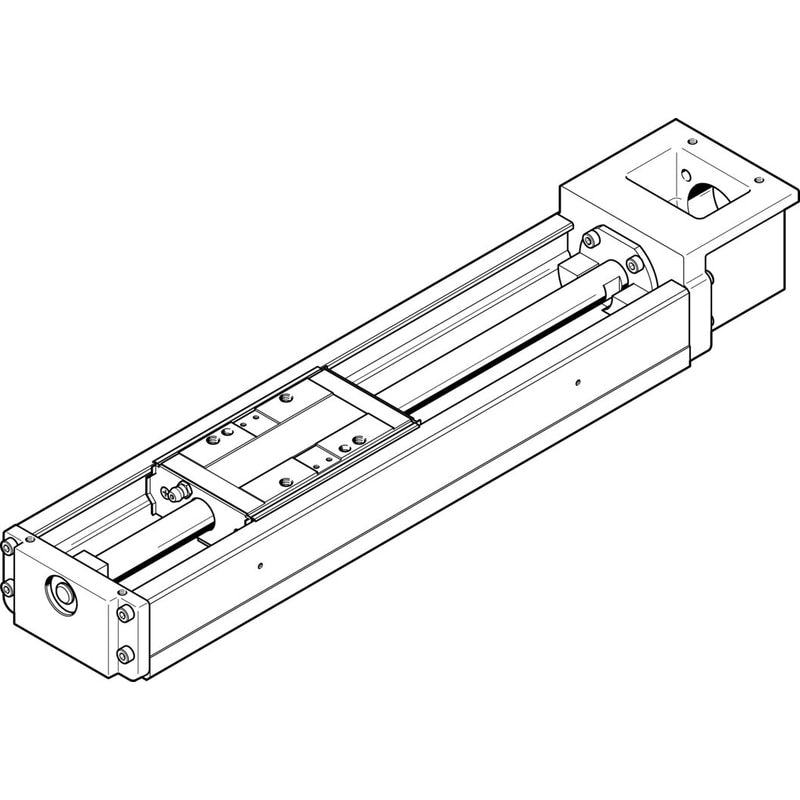

Electric linear slide
EGSK-46-400-20P
562792
GTIN 4052568210007
Vendor Festo
- Size
- 46
- Max. feed force Fx
- 192 N
- Repetition accuracy
- ±0.01 mm
- Working stroke
- 400 mm
Regular price
$3,592.97
Unit price
EGSK-46-400-20P is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EGSK-46-400-20P
Regular price
$3,592.97
Unit price
EGSK-46-400-20P is backordered and will ship as soon as it is back in stock.
| Working stroke | 400 mm |
|---|---|
| Size | 46 |
| Reversing backlash | ≤ 20 µm |
| Screw diameter | 15 mm |
| Spindle pitch | 20 mm/U |
| Type code | EGSK |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | with ball screw driveElectromechanical linear axis |
| Homing | Reference switch |
| Spindle type | Ball screw drive |
| Symbol | 991211 |
| Max. acceleration | 20 m/s² |
| Max. speed | 1.05 m/s |
| Repetition accuracy | ±0.01 mm |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Degree of protection | IP10 |
| Ambient temperature | 0 °C ... 40 °C |
| Fixed bearing dynamic basic load rating | 6600 N |
| Linear guide dynamic basic load rating | 21747 N |
| Dynamic basic load rating, ball screw drive | 3040 N |
| 2nd moment of area Iy | 240000 mmâ´ |
| 2nd moment of area Iz | 1500000 mmâ´ |
| Max. force Fy | 3904 N |
| Max. force Fz | 3904 N |
| Max. torque Mx | 115 Nm |
| Max. torque My | 38.7 Nm |
| Max. torque Mz | 38.7 Nm |
| Max. feed force Fx | 192 N |
| No-load driving torque | 0.1 Nm |
| Ball screw drive statistical basic load rating | 7150 N |
| Linear guide statistical basic load rating | 45500 N |
| Mass moment of inertia JH per meter of stroke | 0.39 kgcm² |
| Mass moment of inertia JO | 0.154 kgcm² |
| Feed constant | 20 mm/U |
| Statistical fixed bearing load rating | 3240 N |
| Reference value, running performance | 10000 km |
| Moving mass | 910 g |
| Slide weight | 910 g |
| Additional slide weight | 910 g |
| Additional weight per 10Â mm stroke | 127 g |
| Basic weight with 0Â mm stroke | 5170 g |
| Product weight | 10250 g |
| Type of mounting | With internal thread and dowel pin |
| Material of end caps | CoatedDie-cast aluminum |
| Profile material | High-alloy steelCoated |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Drive cover material | CoatedDie-cast aluminum |
| Slide material | Steel |
| Spindle nut material | Steel |
| Spindle material | Steel |
