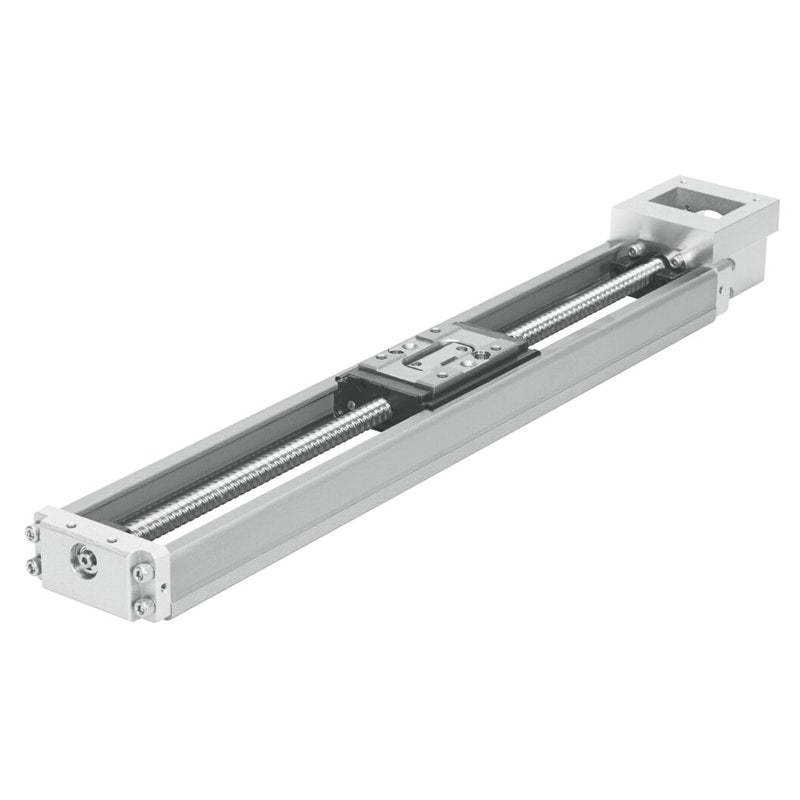

Electric linear slide
EGSK-26-50-2P
562764
GTIN 4052568209728
Vendor Festo
- Size
- 26
- Max. feed force Fx
- 116 N
- Repetition accuracy
- ±0.01 mm
- Working stroke
- 50 mm
Regular price
$1,352.20
Unit price
EGSK-26-50-2P is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EGSK-26-50-2P
Regular price
$1,352.20
Unit price
EGSK-26-50-2P is backordered and will ship as soon as it is back in stock.
| Working stroke | 50 mm |
|---|---|
| Size | 26 |
| Reversing backlash | ≤ 20 µm |
| Screw diameter | 8 mm |
| Spindle pitch | 2 mm/U |
| Type code | EGSK |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | with ball screw driveElectromechanical linear axis |
| Homing | Reference switch |
| Spindle type | Ball screw drive |
| Symbol | 991211 |
| Max. acceleration | 10 m/s² |
| Max. speed | 0.28 m/s |
| Repetition accuracy | ±0.01 mm |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Degree of protection | IP10 |
| Ambient temperature | 0 °C ... 40 °C |
| Fixed bearing dynamic basic load rating | 1380 N |
| Linear guide dynamic basic load rating | 5746 N |
| Dynamic basic load rating, ball screw drive | 2350 N |
| 2nd moment of area Iy | 17000 mmâ´ |
| 2nd moment of area Iz | 150000 mmâ´ |
| Max. force Fy | 2223 N |
| Max. force Fz | 2223 N |
| Max. torque Mx | 37.8 Nm |
| Max. torque My | 12.9 Nm |
| Max. torque Mz | 12.9 Nm |
| Max. feed force Fx | 116 N |
| No-load driving torque | 0.015 Nm |
| Ball screw drive statistical basic load rating | 4020 N |
| Linear guide statistical basic load rating | 12150 N |
| Mass moment of inertia JH per meter of stroke | 0.0316 kgcm² |
| Mass moment of inertia JO | 0.00357 kgcm² |
| Feed constant | 2 mm/U |
| Statistical fixed bearing load rating | 1760 N |
| Reference value, running performance | 1000 km |
| Moving mass | 153 g |
| Slide weight | 153 g |
| Additional slide weight | 153 g |
| Additional weight per 10Â mm stroke | 42 g |
| Basic weight with 0Â mm stroke | 780 g |
| Product weight | 990 g |
| Type of mounting | With internal thread and dowel pin |
| Material of end caps | CoatedDie-cast aluminum |
| Profile material | High-alloy stainless steel |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Drive cover material | CoatedDie-cast aluminum |
| Slide material | Steel |
| Spindle nut material | Steel |
| Spindle material | Steel |
