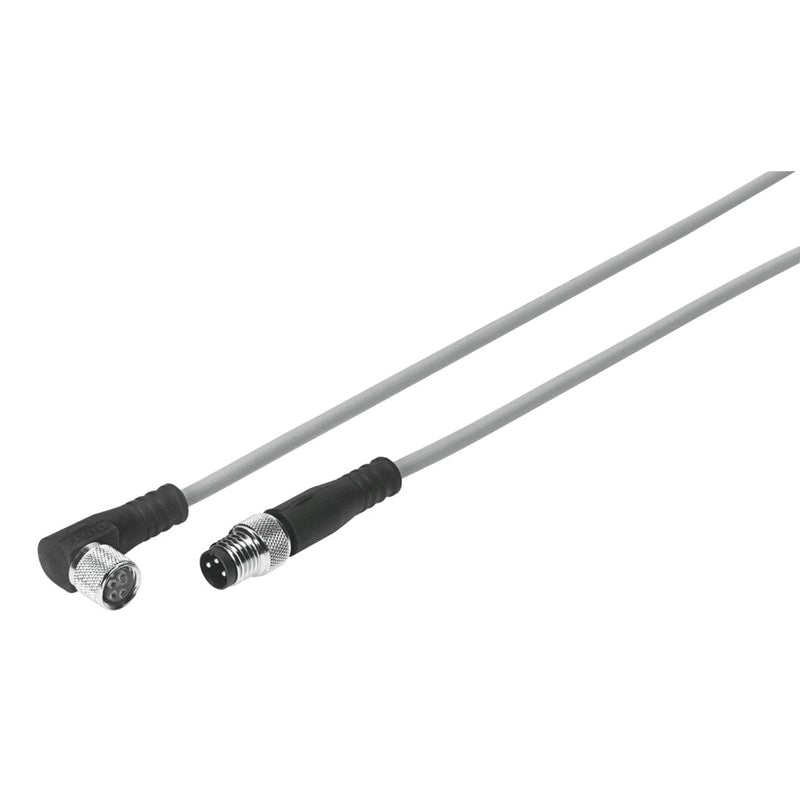

Connecting cable
NEBV-M8W4L-E-2.5-M8G3
562468
GTIN 4052568056742
Vendor Festo
- Cable length
- 2.5 m
Regular price
$45.02
Unit price
NEBV-M8W4L-E-2.5-M8G3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBV-M8W4L-E-2.5-M8G3
Regular price
$45.02
Unit price
NEBV-M8W4L-E-2.5-M8G3 is backordered and will ship as soon as it is back in stock.
connecting cable NEBV-M8W4L-E-2.5-M8G3 Conforms to standard=(* EN 61076-2-101, * ISO 20401), Operating status display=Yellow LED, Product weight=50 g, Electrical connection=(* angled socket / straight plug, * M8x1 / M8x1, * 4-pin / 3-pin), Operating voltage range DC=20,4 - 26,4 V
| Conforms to standard | EN 61076-2-101ISO 20401 |
|---|---|
| Operating status display | Yellow LED |
| Product weight | 50 g |
| Electrical connection | angled socket / straight plugM8x1 / M8x14-pin / 3-pin |
| Operating voltage range DC | 20.4 ... 26.4 V |
| Acceptable current load at 40°C | 0.125 |
| Cable length | 2.5 m |
| Cable attribute | Suitable for chain link trunking |
| Min. cable bending radius | 35 mm |
| Cable diameter | 3.3 mm |
| Cable structure | 2x0,25 |
| Protection class | IP65IP67 |
| Ambient temperature | '-10 ... 50 °C |
