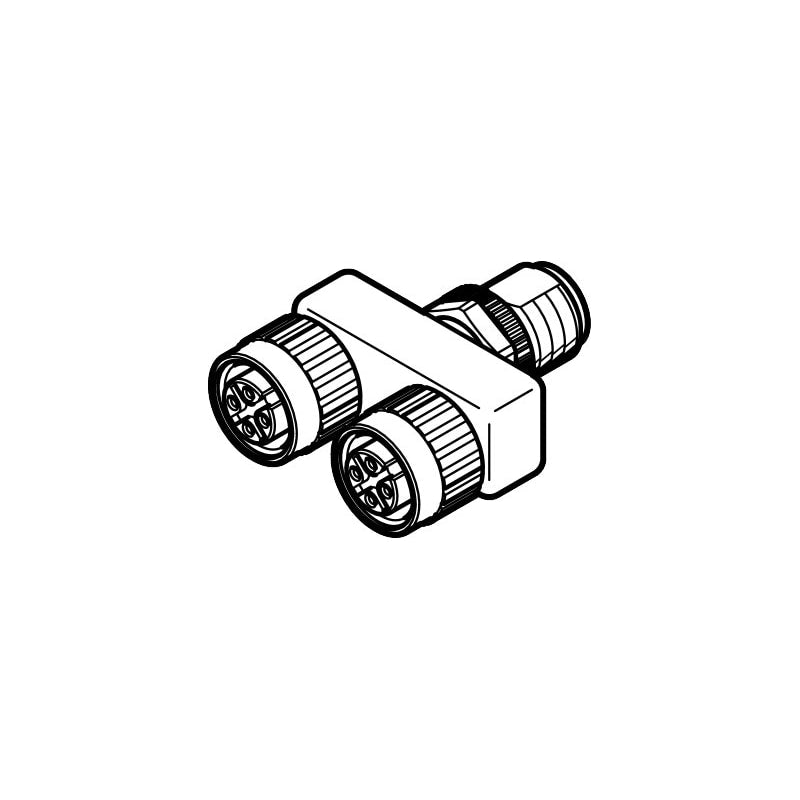

Push-in T-connector
NEDU-M12D4-M12T4-IS
562248
GTIN 4052568099169
Vendor Festo
Regular price
$75.55
Unit price
NEDU-M12D4-M12T4-IS is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEDU-M12D4-M12T4-IS
Regular price
$75.55
Unit price
NEDU-M12D4-M12T4-IS is backordered and will ship as soon as it is back in stock.
| Type code | NEDU |
|---|---|
| Based on norm | EN 61076-2-101 |
| Explosion prevention and protection | Observe the information on the certificateZone 1 (ATEX)Zone 22 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX) |
| Contact durability | 100 |
| Type of mounting | Screw-in |
| Product weight | 25.5 g |
| Electrical connection | Socket/socket/plug4-pin/4-pin/4-pinA-coded/A-coded/A-codedM12x1/M12x1/M12x1 |
| DC operating voltage range | 0 V ... 30 V |
| Degree of protection | IP65IP67 |
| Ambient temperature | -25 °C ... 85 °C |
| Note on materials | RoHS-compliant |
| Corrosion resistance class (CRC) | 3 - High corrosion stress |
| Housing material | TPE-U(PU)-reinforcedDie-cast zinc |
| Material of union nut | PA-reinforced |
| Seals material | FPM |
| Material of pin contacts | Gold-platedCopper alloy |
| Symbol | 992230 |
