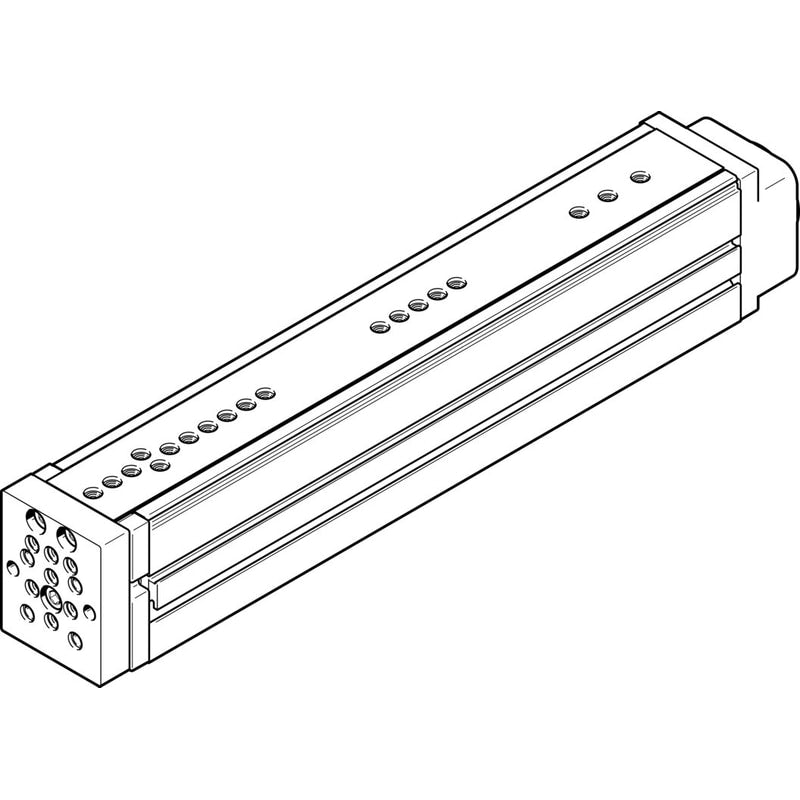

Mini slide
EGSL-BS-55-200-5P
562228
GTIN 4052568209018
Vendor Festo
- Size
- 55
- Repetition accuracy
- ±0.015 mm
- Working stroke
- 200 mm
Regular price
$3,319.69
Unit price
EGSL-BS-55-200-5P is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EGSL-BS-55-200-5P
Regular price
$3,319.69
Unit price
EGSL-BS-55-200-5P is backordered and will ship as soon as it is back in stock.
mini slide EGSL-BS-55-200-5P Working stroke=200 mm, Size=55, Parallel running in the z-direction=0,08 mm, Parallelism=0,1 mm, Reversing backlash=<= 50 µm
| Working stroke | 200 mm |
|---|---|
| Size | 55 |
| Parallel running in the z-direction | 0.08 mm |
| Parallelism | 0.1 mm |
| Reversing backlash | <= 50 µm |
| Spindle diameter | 12 mm |
| Spindle pitch | 5 mm/U |
| Assembly position | Any |
| Guide | Ball bearing cage guide |
| Design structure | Electric mini slideGuideWith ball screw |
| Motor type | Stepper motorServomotor |
| Spindle type | Ball screw |
| Position detection | For proximity sensor |
