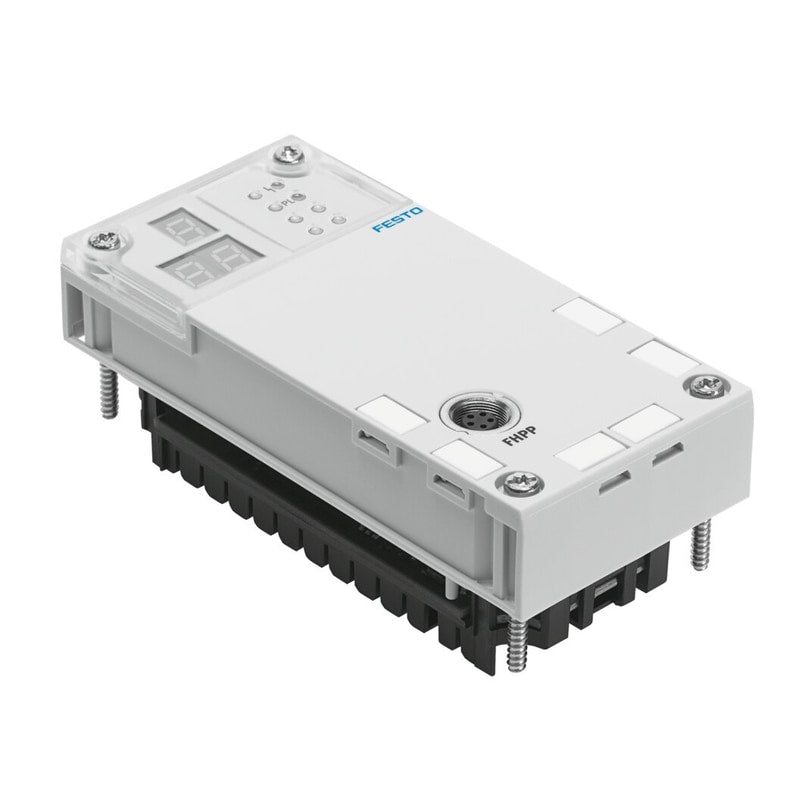

CPX-CM-HPP

control block CPX-CM-HPP Ambient temperature=-5 - 50 °C, Product weight=140 g, CE mark (see declaration of conformity)=to EU directive low-voltage devices, Protection class=(* IP65, * IP67), Storage temperature=-20 - 70 °C

Ambient temperature	'-5 ... 50 °C
Product weight	140 g
CE mark (see declaration of conformity)	to EU directive low-voltage devices
Protection class	IP65IP67
Storage temperature	'-20 ... 70 °C
Materials note	Conforms to RoHS
Power failure buffering	10 ms
Total number of axes	4
Dimensions W x L x H	50 mm x 107 mm x 55 mm
Control interface	CAN-Bus
Fieldbus interface	1x socket, M9, 5-pin
Device-specific diagnostics	Channel and module-orientated diagnostics- Undervoltage/short circuit of modules- Diagnostic memory
Configuration support	MMI handheld terminal
