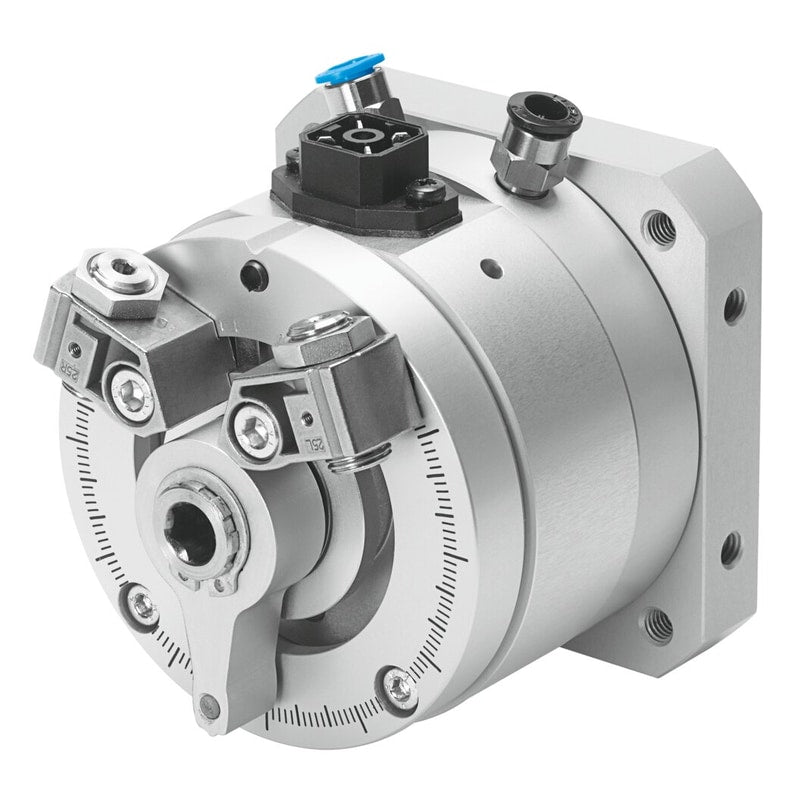

Rotary actuator
DSMI-40-270-A-B
561691
GTIN 4052568208868
Vendor Festo
- Piston diameter
- 40 mm
- Swivel angle
- 0 deg - 272 deg
- Min. mass moment of inertia, horizontal
- 0.006 kgm²
- Max. mass moment of inertia, horizontal
- 0.12 kgm²
Regular price
$2,134.73
Unit price
DSMI-40-270-A-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DSMI-40-270-A-B
Regular price
$2,134.73
Unit price
DSMI-40-270-A-B is backordered and will ship as soon as it is back in stock.
semi-rotary drive DSMI-40-270-A-B with integrated displacement encoder. Optional endposition sensing via proximity sensors type SME/SMT-10F-...-KL. Rotation angle adjustment range=0 - 270 deg, Stroke shortening in the end-positions=5 °, Smallest positioning stroke=(* 5° for positioning, * 15° with Soft Stop), Piston diameter=40 mm, Swivel angle=0 - 272 deg
| Rotation angle adjustment range | 0 ... 270 deg |
|---|---|
| Stroke shortening in the end-positions | 5 ° |
| Smallest positioning stroke | 5° for positioning15° with Soft Stop |
| Piston diameter | 40 mm |
| Swivel angle | 0 ... 272 deg |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Mounting position, positioning | Any |
| Mounting position, soft stop | Horizontal |
| Measuring method: displacement encoder | Analogue |
| Design structure | Drive shaft with ball bearingRotary vane |
| Position detection | For proximity sensorWith integrated angular displacement encoder |
| Operating pressure, positioning / soft stop | 4 ... 8 bar |
| Max. swivel frequency at 6 bar | 2 Hz |
