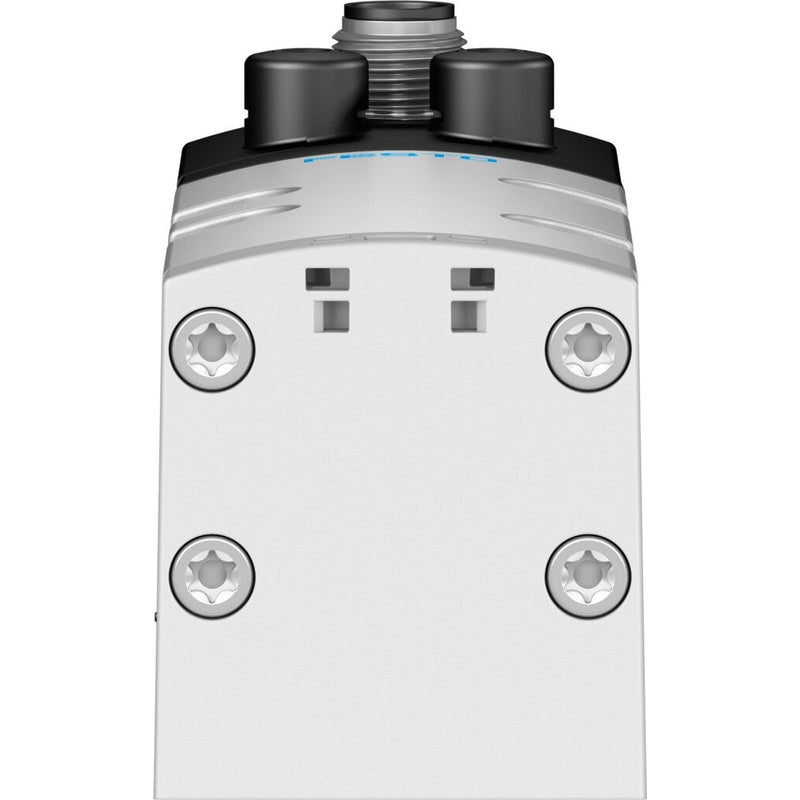

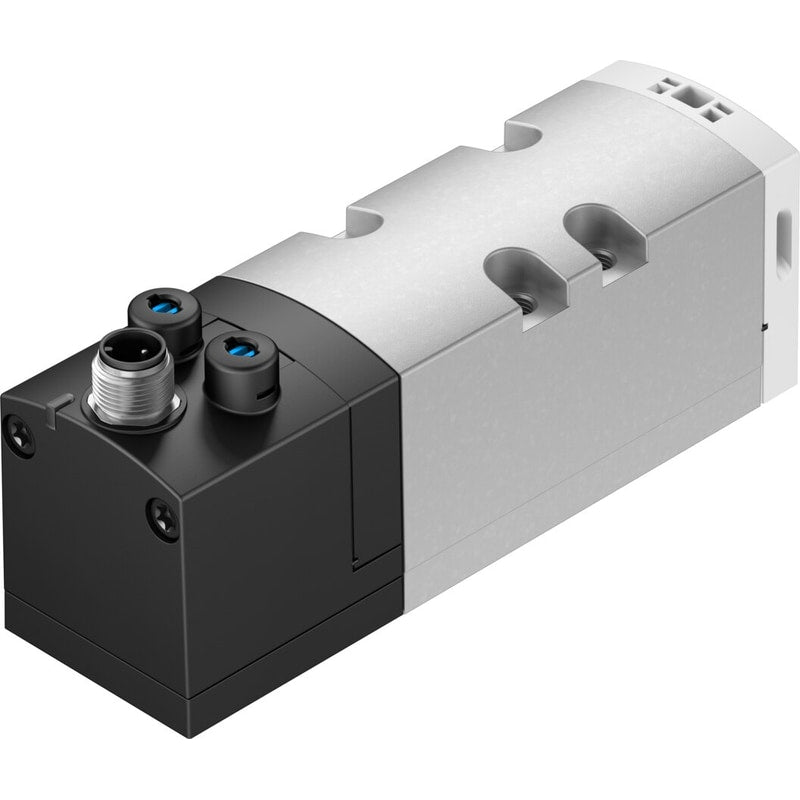

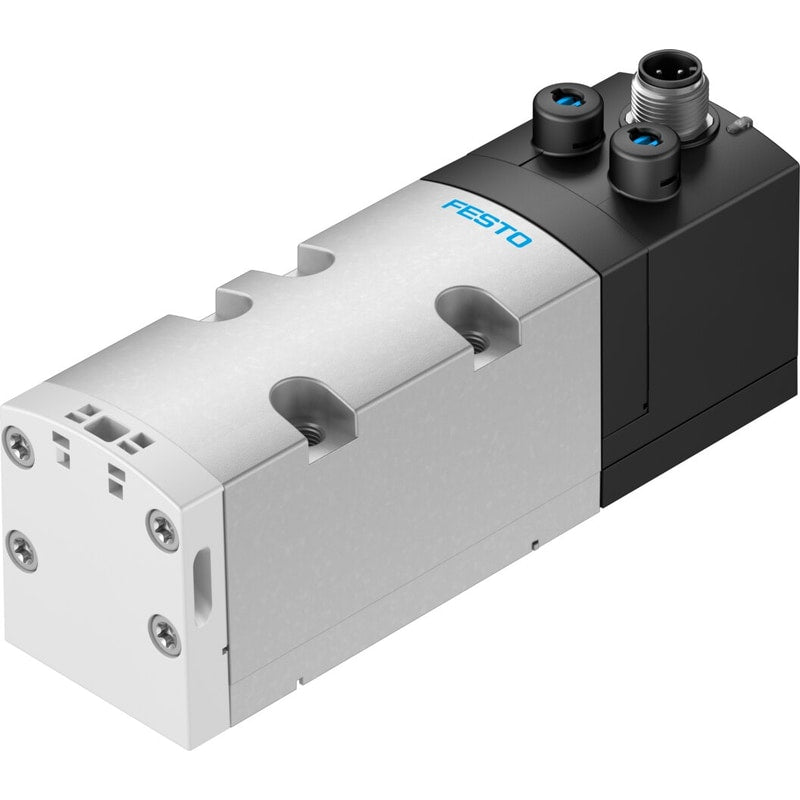

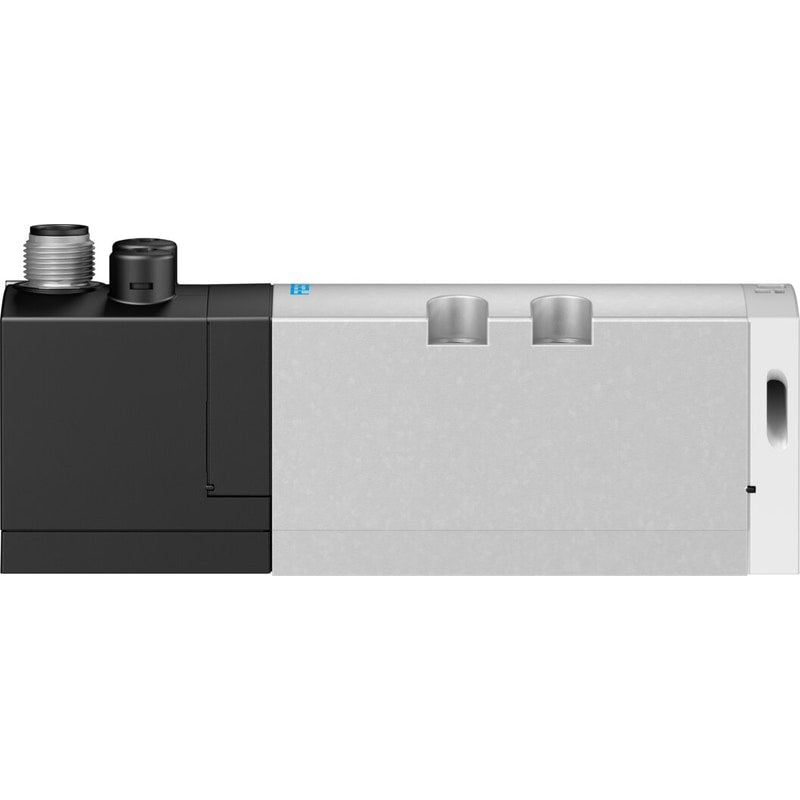

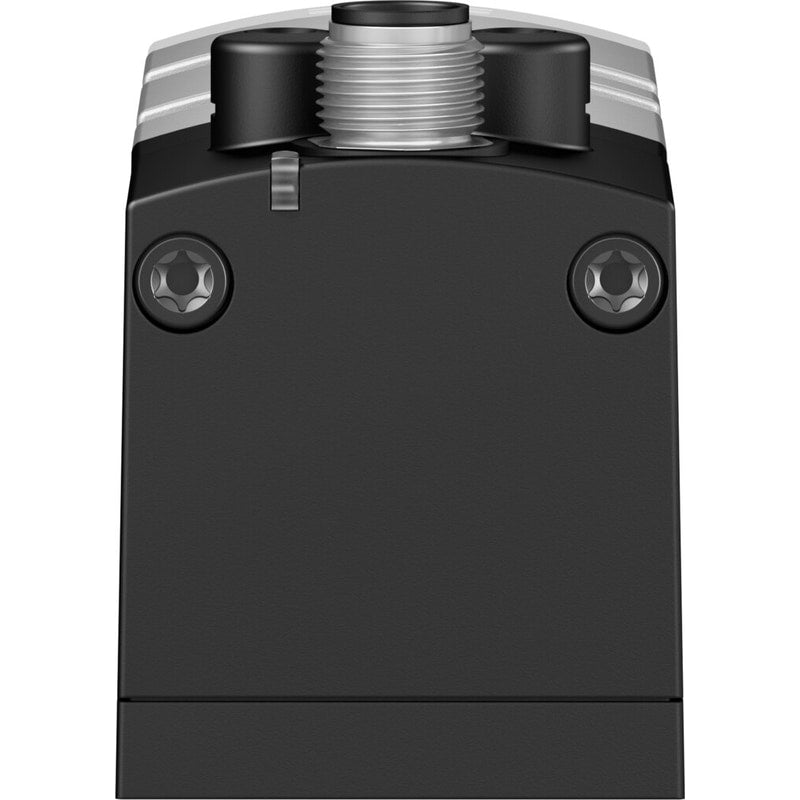

Air solenoid valve
VSVA-B-B52-ZD-D1-1R5L
561374
GTIN 4052568006150
Vendor Festo

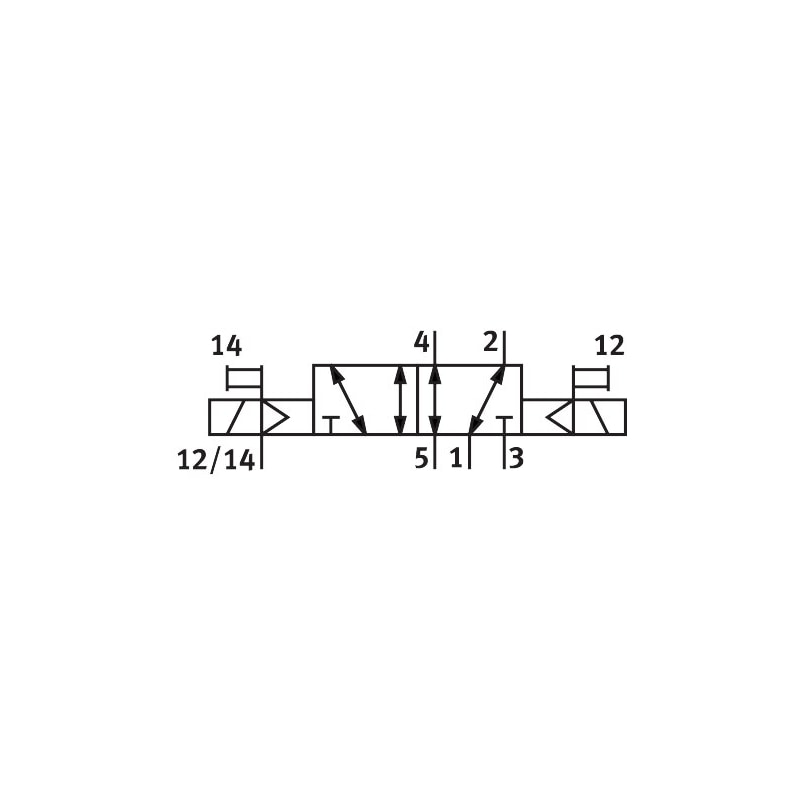

- Valve function
- 5/2, bistable
- Normal nominal flow rate (normalized to DIN 1343)
- 1300 l/min
- Pneumatic working port
- Sub-base, size 1 according to ISO 5599-1 - G1/4
- Actuation type
- Electrical
Regular price
$298.16
Unit price
VSVA-B-B52-ZD-D1-1R5L is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VSVA-B-B52-ZD-D1-1R5L
Regular price
$298.16
Unit price
VSVA-B-B52-ZD-D1-1R5L is backordered and will ship as soon as it is back in stock.
solenoid valve VSVA-B-B52-ZD-D1-1R5L Valve function=5/2 bistable, Type of actuation=electrical, Width=42 mm, Standard nominal flow rate=1300 l/min, Operating pressure=-0,9 - 16 bar
| Valve function | 5/2 bistable |
|---|---|
| Type of actuation | electrical |
| Width | 42 mm |
| Standard nominal flow rate | 1,300 l/min |
| Operating pressure | '-0.9 ... 16 bar |
| Design structure | Piston slide |
| Protection class | IP65NEMA 4 |
| Authorisation | c CSA us (OL)c UL us - Recognized (OL) |
| Nominal size | 11 mm |
| Grid dimension | 43 mm |
| Exhaust-air function | throttleable- via flow control plate- via individual sub-base |
| Sealing principle | soft |
| Assembly position | Any |
