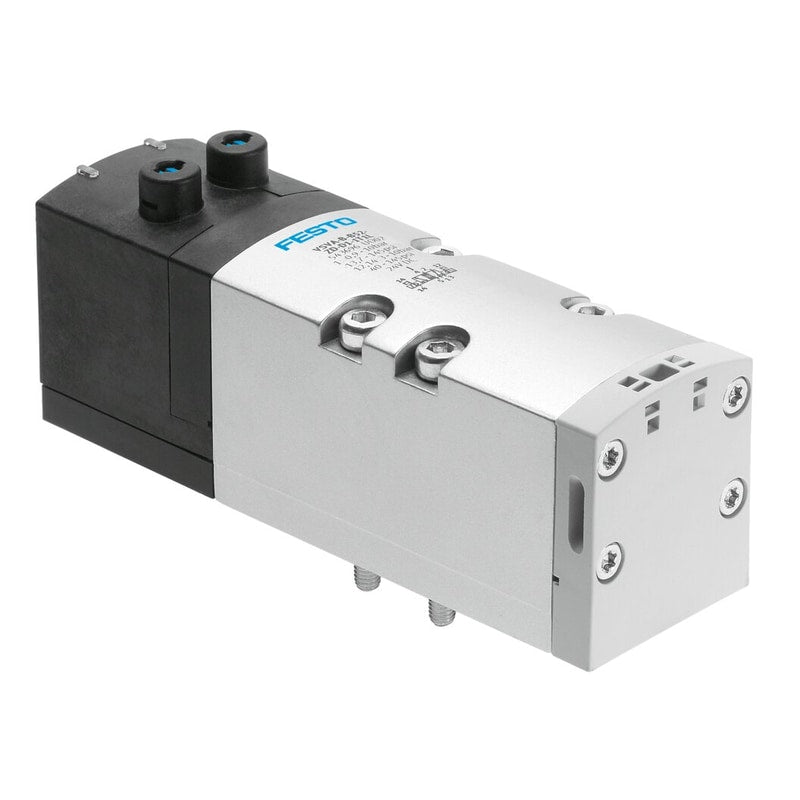

Air solenoid valve
VSVA-B-T22C-AZD-D1-1T1L
561340
GTIN 4052568208684
Vendor Festo
- Valve function

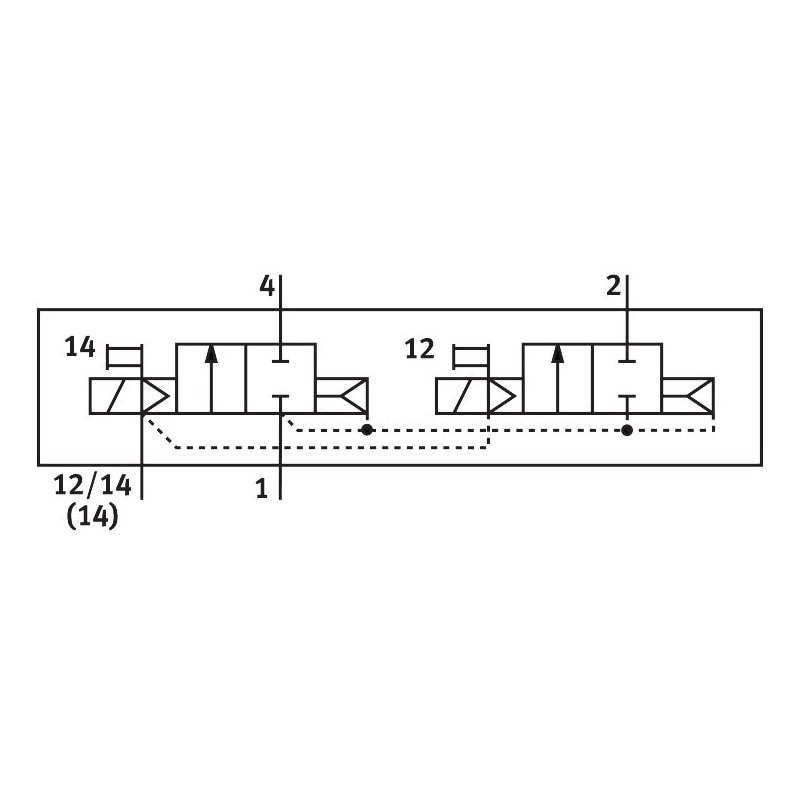

- 2x2/2 closed, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 1400 l/min
- Pneumatic connection 1
- Sub-base, size 1 as per ISO 5599-2
- Actuation type
- Electrical
Regular price
$269.85
Unit price
VSVA-B-T22C-AZD-D1-1T1L is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VSVA-B-T22C-AZD-D1-1T1L
Regular price
$269.85
Unit price
VSVA-B-T22C-AZD-D1-1T1L is backordered and will ship as soon as it is back in stock.
solenoid valve VSVA-B-T22C-AZD-D1-1T1L For valve terminal VTSA. Valve function=2x2/2 closed, monostable, Type of actuation=electrical, Width=42 mm, Standard nominal flow rate=1400 l/min, Operating pressure=3 - 10 bar
| Valve function | 2x2/2 closed, monostable |
|---|---|
| Type of actuation | electrical |
| Width | 42 mm |
| Standard nominal flow rate | 1,400 l/min |
| Operating pressure | 3 ... 10 bar |
| Design structure | Piston slide |
| Type of reset | Air spring |
| Protection class | IP65NEMA 4 |
| Authorisation | CSA (OL)c UL us - Recognized (OL) |
| Exhaust-air function | throttleable- via individual sub-base |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | detentingPushingCovered |
