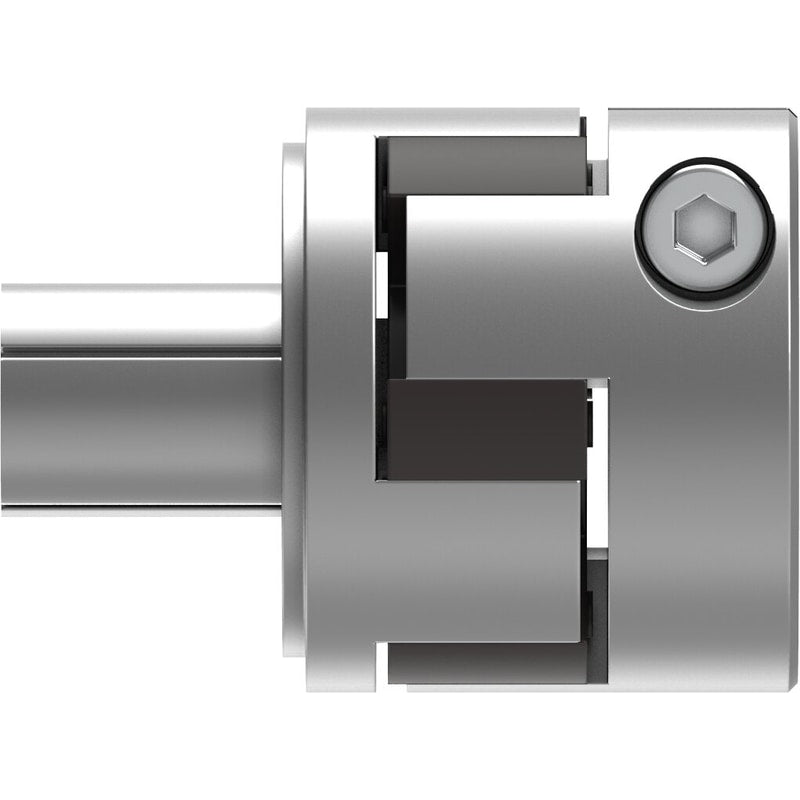

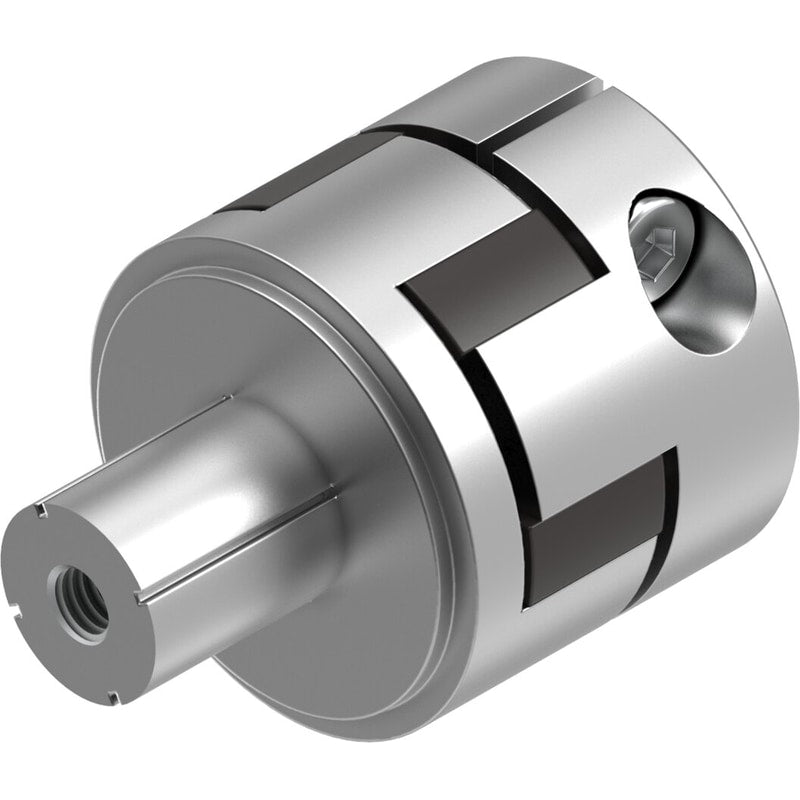

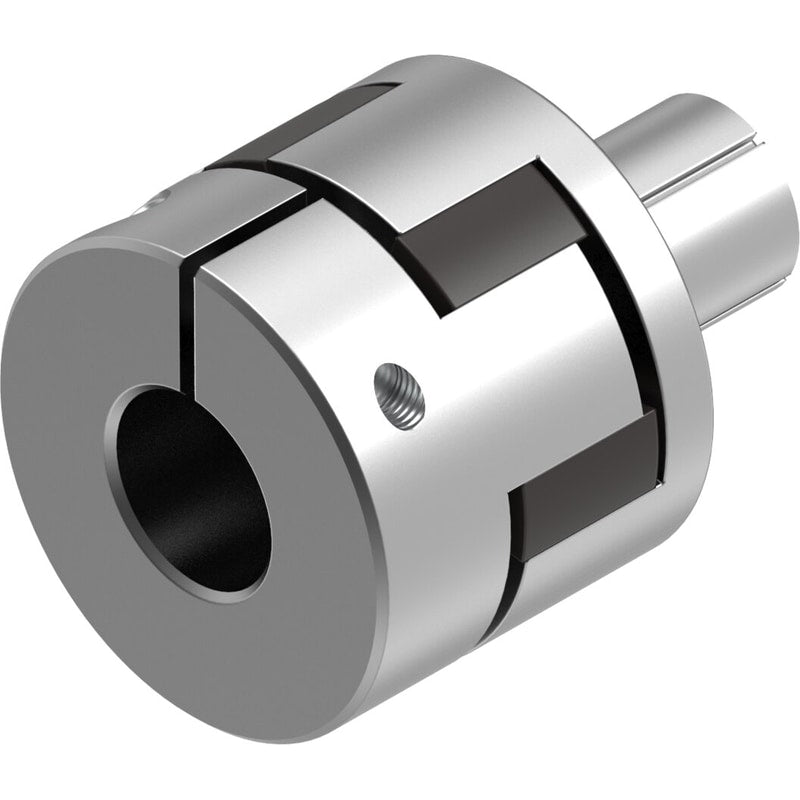

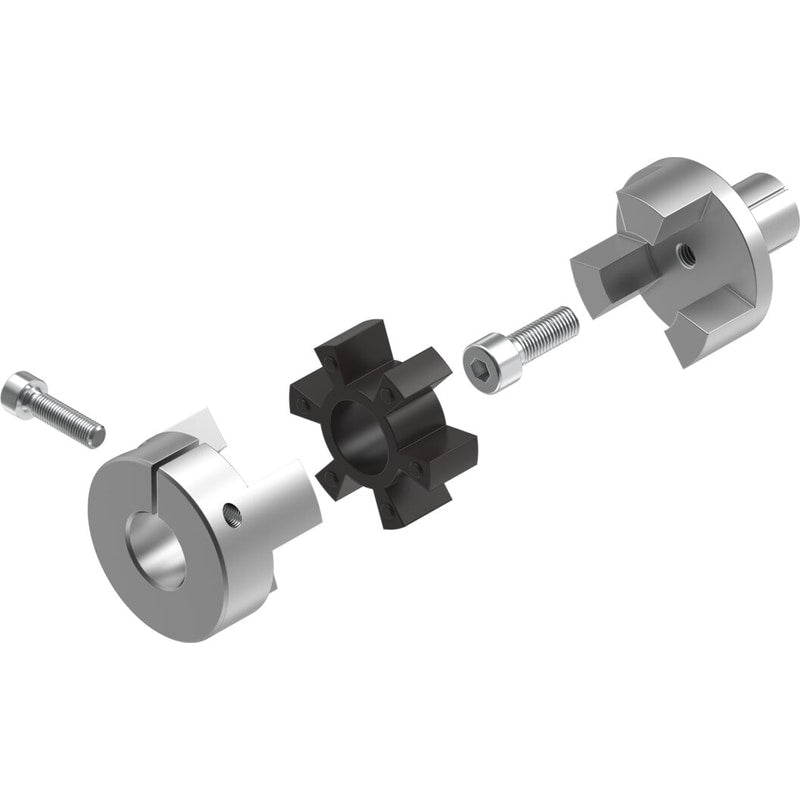

Coupling
EAMD-25-22-6.35-10X12
561293
GTIN 4052568099039
Vendor Festo
Regular price
$120.14
Unit price
EAMD-25-22-6.35-10X12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EAMD-25-22-6.35-10X12
Regular price
$120.14
Unit price
EAMD-25-22-6.35-10X12 is backordered and will ship as soon as it is back in stock.
| Diameter of holder 1 | 6.35 mm |
|---|---|
| Diameter of holder 2 | 10 mm |
| Size | 25 |
| Nominal length | 22 mm |
| Type code | EAMD |
| Mounting position | Any |
| Max. rotational speed | 8000 1/min |
| Storage temperature | -25 °C ... 60 °C |
| Relative air humidity | 0 - 95 % |
| Ambient temperature | -25 °C ... 60 °C |
| Mass moment of inertia | 3.2 kgmm² |
| Transferable torque | 3.6 Nm |
| Product weight | 43.7 g |
| Note on materials | RoHS-compliant |
