Sub-base
VMPAL-AP-20-QS8-1-T1
561021
GTIN 4052568098810
Vendor Festo
Regular price
$57.28
Unit price
VMPAL-AP-20-QS8-1-T1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPAL-AP-20-QS8-1-T1
Regular price
$57.28
Unit price
VMPAL-AP-20-QS8-1-T1 is backordered and will ship as soon as it is back in stock.

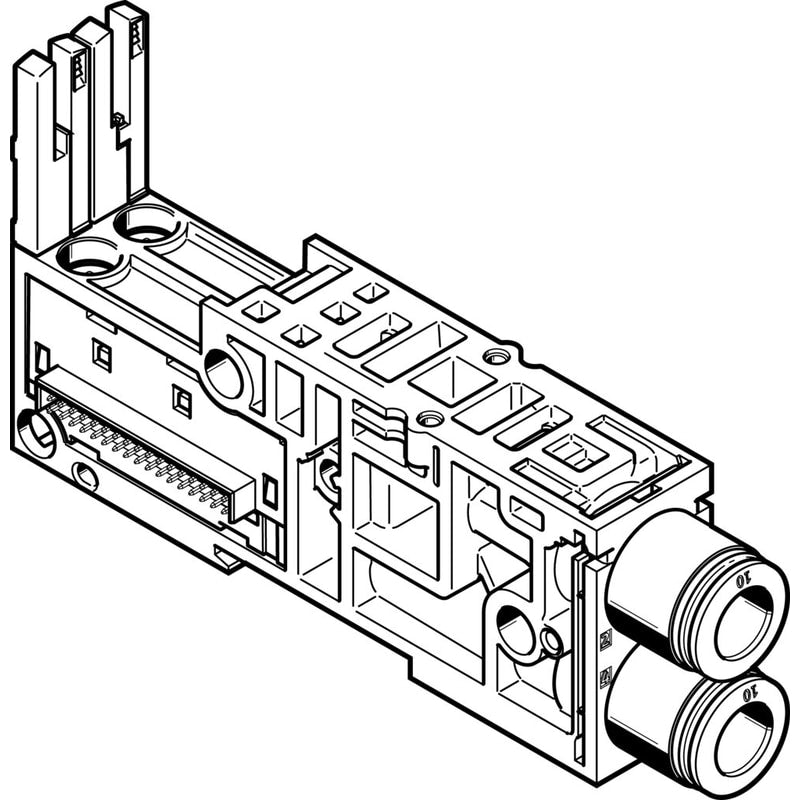

sub-base VMPAL-AP-20-QS8-1-T1 Width=21,2 mm, Length=107,3 mm, Grid dimension=21,2 mm, Pressure zone separation=1, Max. number of valve positions=1
| Width | 21.2 mm |
|---|---|
| Length | 107.3 mm |
| Grid dimension | 21.2 mm |
| Valve size | 20 mm |
| Pressure zone separation | Duct 1 |
| Max. number of valve positions | 1 |
| Flow direction | reversible |
| Valve terminal structure | Valve sizes can be mixed |
| Max. number of solenoid coils | 1 |
| Operating pressure | '-0.9 ... 10 bar |
| Pilot pressure | 3 ... 8 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
