Sub-base

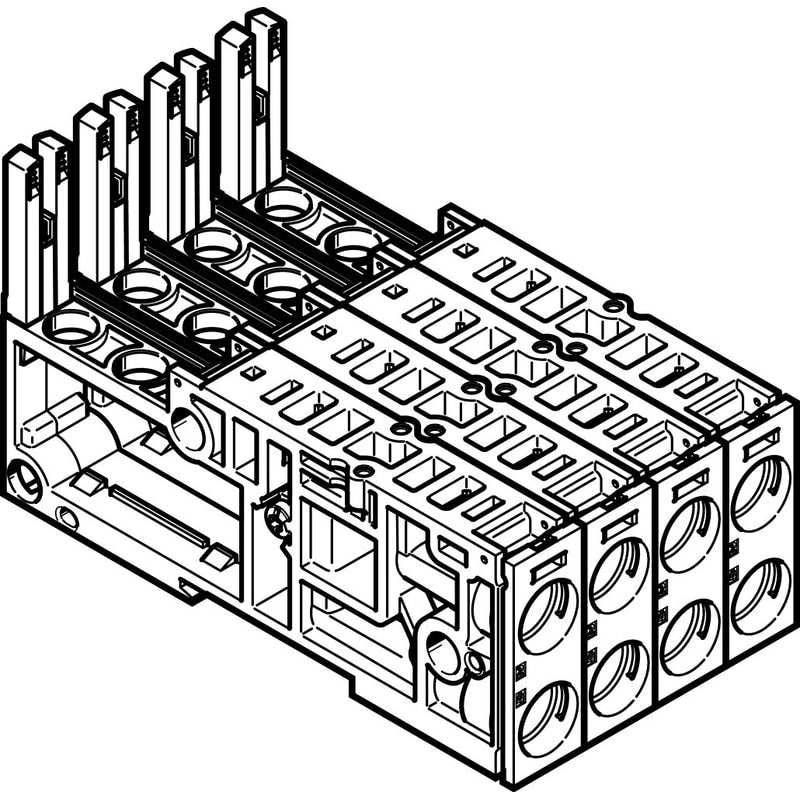

VMPAL-AP-4X14
560983
GTIN 4052568260033
Vendor Festo
Regular price
$52.67
Unit price
VMPAL-AP-4X14 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPAL-AP-4X14
Regular price
$52.67
Unit price
VMPAL-AP-4X14 is backordered and will ship as soon as it is back in stock.
| Width | 59.6mm |
|---|---|
| Length | 107.3mm |
| Width dimension | 14.9mm |
| Valve size | 14mm |
| Max. no. of valve positions | 4 |
| Flow direction | Reversible |
| Valve manifold design | Valve sizes can be mixed |
| Operating pressure | -0.09MPa |
| Operating pressure | -0.9bar |
| Pilot pressure MPa | 0.3MPa |
| Pilot pressure | 3bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 3 - High corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -5°C |
| Product weight | 130.8g |
| Pneumatic connection 2 | for 14 mm cartridge |
| Pneumatic connection 4 | For 14 mm cartridge |
| Note on materials | RoHS-compliant |
| Material of sub-base | PA-reinforced |
