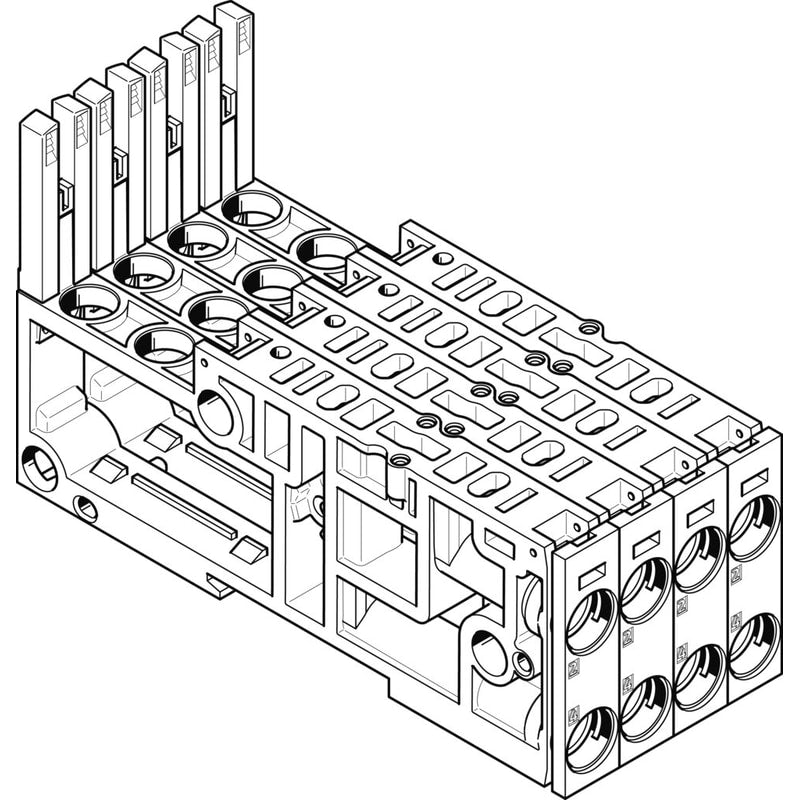

Sub-base
VMPAL-AP-4X10
560981
GTIN 4052568098469
Vendor Festo
Regular price
$49.27
Unit price
VMPAL-AP-4X10 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPAL-AP-4X10
Regular price
$49.27
Unit price
VMPAL-AP-4X10 is backordered and will ship as soon as it is back in stock.
sub-base VMPAL-AP-4X10 Width=10,7 mm, Length=107,3 mm, Grid dimension=10,7 mm, Max. number of valve positions=1, Operating pressure=-0,9 - 10 bar
| Width | 42.8 mm |
|---|---|
| Length | 107.3 mm |
| Grid dimension | 10.7 mm |
| Valve size | 10 mm |
| Max. number of valve positions | 4 |
| Flow direction | reversible |
| Valve terminal structure | Valve sizes can be mixed |
| Operating pressure | '-0.9 ... 10 bar |
| Pilot pressure | 3 ... 8 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 3 - High corrosion stress |
| Ambient temperature | '-5 ... 50 °C |
