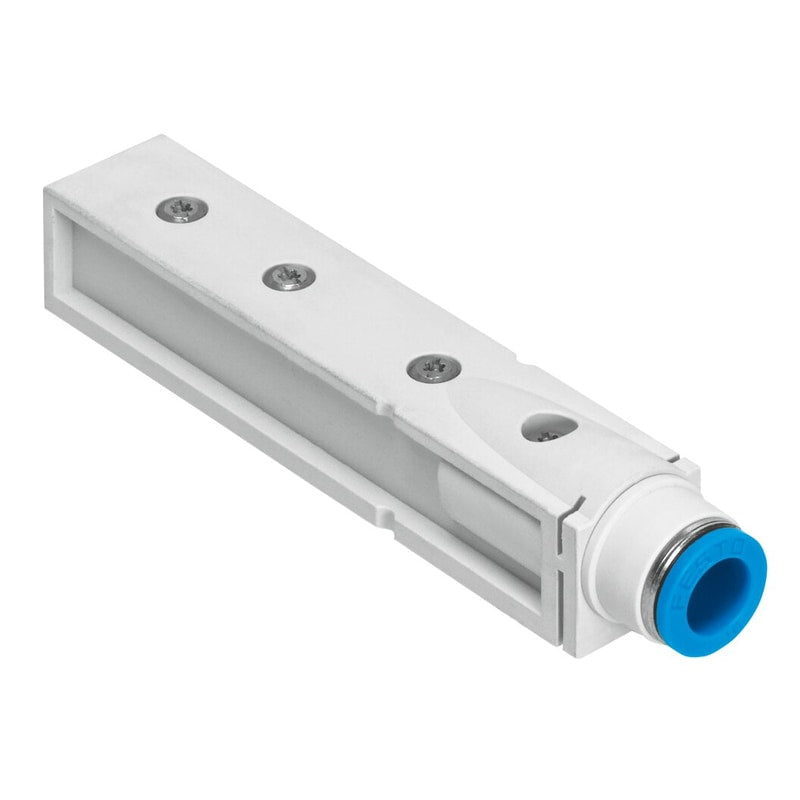

Plate
VMPAL-EG-QS10
560957
GTIN 4052568055967
Vendor Festo
Regular price
$15.58
Unit price
VMPAL-EG-QS10 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPAL-EG-QS10
Regular price
$15.58
Unit price
VMPAL-EG-QS10 is backordered and will ship as soon as it is back in stock.
plate VMPAL-EG-QS10 Pressure regulation range=0,5 - 5 bar, Inlet pressure 1=0,5 - 10 bar, Corrosion resistance classification CRC=3 - High corrosion stress, Ambient temperature=-5 - 50 °C, Materials note=Conforms to RoHS
| Width | 20.5 mm |
|---|---|
| Length | 107.3 mm |
| Integrated function | ducted exhaust air |
| Valve terminal structure | Valve sizes can be mixed |
| Operating pressure | '-0.9 ... 10 bar |
| Pressure regulation range | 0.5 ... 5 bar |
| Inlet pressure 1 | 0.5 ... 10 bar |
| Corrosion resistance classification CRC | 3 - High corrosion stress |
| Ambient temperature | '-5 ... 50 °C |
| Product weight | 30 g |
| Pneumatic ports 3/5 combined | for tubing, 10mm outside diameter |
| Materials note | Conforms to RoHS |
| Material plate | PA |
