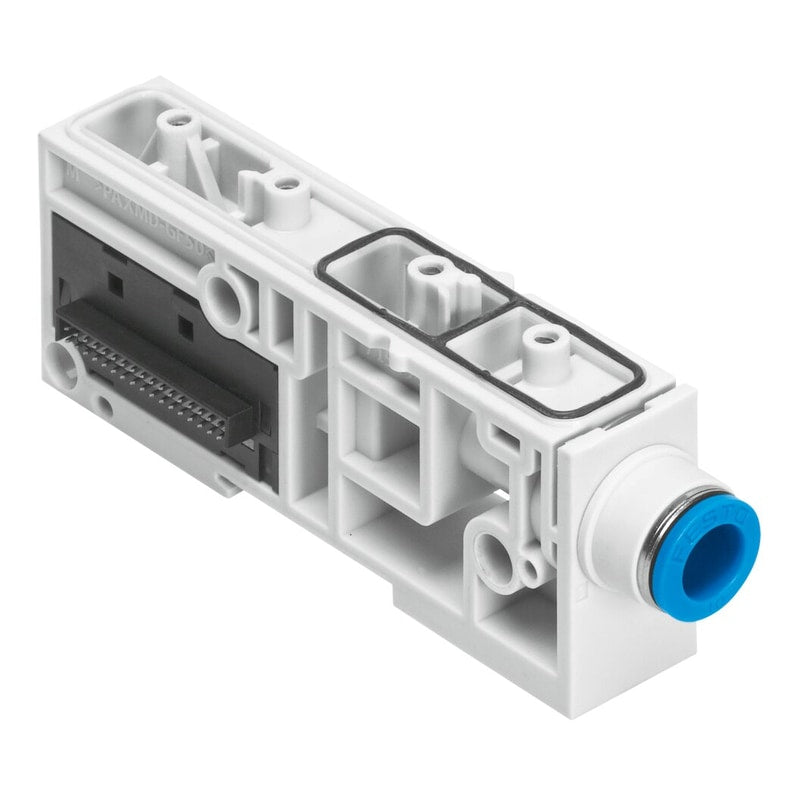

Power supply module
VMPAL-SP-QS12
560952
GTIN 4052568055912
Vendor Festo
Regular price
$38.02
Unit price
VMPAL-SP-QS12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPAL-SP-QS12
Regular price
$38.02
Unit price
VMPAL-SP-QS12 is backordered and will ship as soon as it is back in stock.
power supply module VMPAL-SP-QS12 Operating pressure=-0,9 - 10 bar, Pilot pressure=3 - 8 bar, Corrosion resistance classification CRC=3 - High corrosion stress, Ambient temperature=-5 - 50 °C, Materials note=Conforms to RoHS
| Width | 23.2 mm |
|---|---|
| Length | 107.3 mm |
| Integrated function | with electrical interlinking module |
| Valve terminal structure | Valve sizes can be mixed |
| Operating pressure | '-0.9 ... 10 bar |
| Pilot pressure | 3 ... 8 bar |
| Corrosion resistance classification CRC | 3 - High corrosion stress |
| Ambient temperature | '-5 ... 50 °C |
| Product weight | 50 g |
| Pneumatic connection, port 1 | for tubing, 12mm outside diameter |
| Materials note | Conforms to RoHS |
| Material supply module | Wrought Aluminium alloyPA-reinforced |
