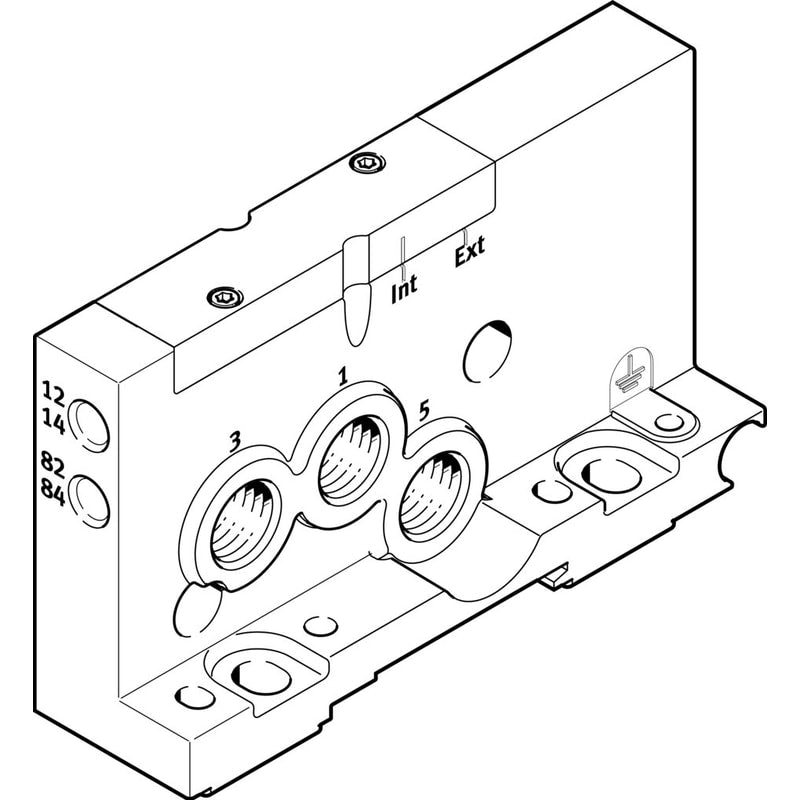

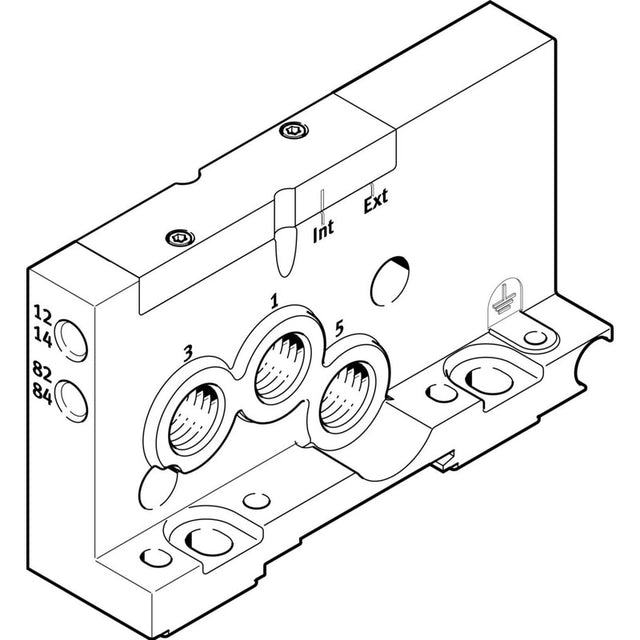

End plate
VMPAL-EPR-SP
560947
GTIN 4052568055875
Vendor Festo
Regular price
$19.78
Unit price
VMPAL-EPR-SP is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPAL-EPR-SP
Regular price
$19.78
Unit price
VMPAL-EPR-SP is backordered and will ship as soon as it is back in stock.
end plate VMPAL-EPR-SP Operating pressure=-0,9 - 10 bar, Pilot pressure=3 - 8 bar, Corrosion resistance classification CRC=3 - High corrosion stress, Ambient temperature=-5 - 50 °C, Materials note=Conforms to RoHS
| Width | 28.8 mm |
|---|---|
| Length | 107.3 mm |
| Integrated function | Pilot air selector for choosing the pilot air supply (internal or external) |
| Flow direction | reversible |
| Valve terminal structure | Valve sizes can be mixed |
| Operating pressure | '-0.9 ... 10 bar |
| Pilot pressure | 3 ... 8 bar |
| Corrosion resistance classification CRC | 3 - High corrosion stress |
| Protection class | IP65IP67 |
| Note on degree of protection | in assembled condition |
| Ambient temperature | '-5 ... 50 °C |
| Product weight | 180 g |
| Auxiliary pilot air port 12/14 | M7 |
