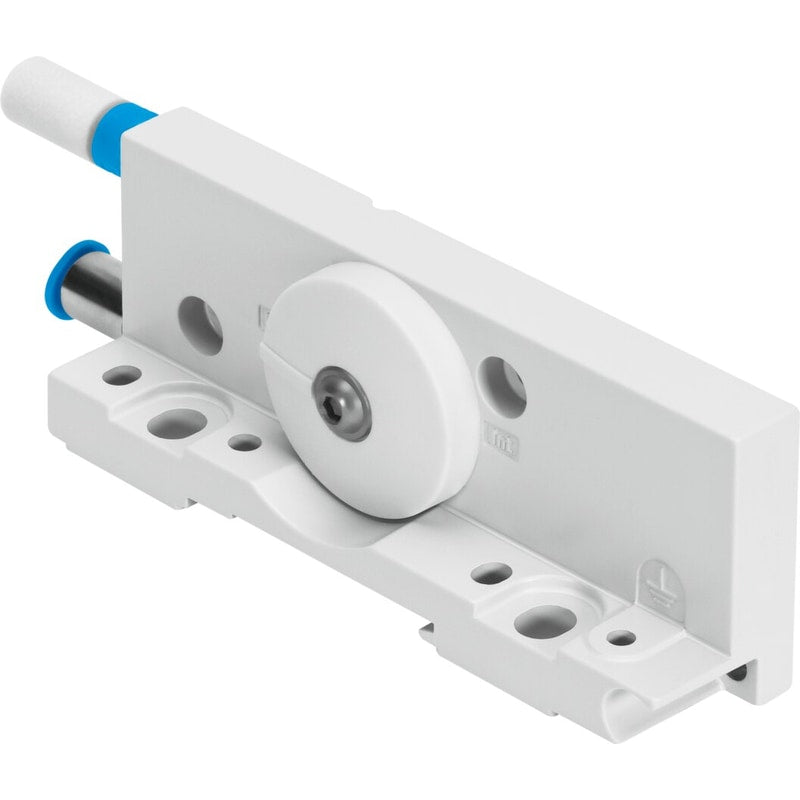

End plate
VMPAL-EPR
560945
GTIN 4052568055868
Vendor Festo
Regular price
$16.26
Unit price
VMPAL-EPR is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPAL-EPR
Regular price
$16.26
Unit price
VMPAL-EPR is backordered and will ship as soon as it is back in stock.
end plate VMPAL-EPR Operating pressure=-0,9 - 10 bar, Pilot pressure=3 - 8 bar, Corrosion resistance classification CRC=3 - High corrosion stress, Ambient temperature=-5 - 50 °C, Materials note=Conforms to RoHS
| Width | 24.8 mm |
|---|---|
| Length | 107.3 mm |
| Integrated function | Pilot air selector for choosing the pilot air supply (internal or external) |
| Valve terminal structure | Valve sizes can be mixed |
| Operating pressure | '-0.9 ... 10 bar |
| Pilot pressure | 3 ... 8 bar |
| Corrosion resistance classification CRC | 3 - High corrosion stress |
| Protection class | IP65IP67 |
| Note on degree of protection | in assembled condition |
| Ambient temperature | '-5 ... 50 °C |
| Product weight | 180 g |
| Auxiliary pilot air port 12/14 | M7 |
| Pilot exhaust port 82/84 | M7 |
