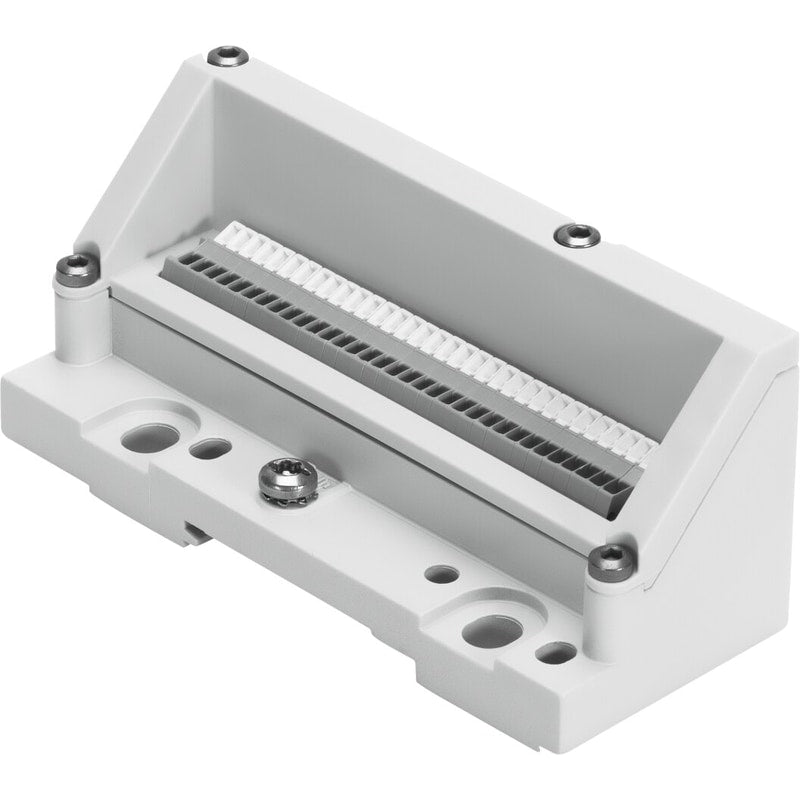

VMPAL-EPL-KL33-IP40

end plate VMPAL-EPL-KL33-IP40 Operating pressure=-0,9 - 10 bar, Pilot pressure=3 - 8 bar, Corrosion resistance classification CRC=3 - High corrosion stress, Ambient temperature=-5 - 50 °C, Materials note=Conforms to RoHS

Width	43 mm
Length	107.3 mm
Max. number of valve positions	32
Valve terminal structure	Valve sizes can be mixed
Max. number of solenoid coils	32
Operating pressure	'-0.9 ... 10 bar
Pilot pressure	3 ... 8 bar
Nominal operating voltage DC	24 V
Corrosion resistance classification CRC	3 - High corrosion stress
Protection class	IP40
Note on degree of protection	in assembled condition
Ambient temperature	'-5 ... 50 °C
Product weight	190 g
