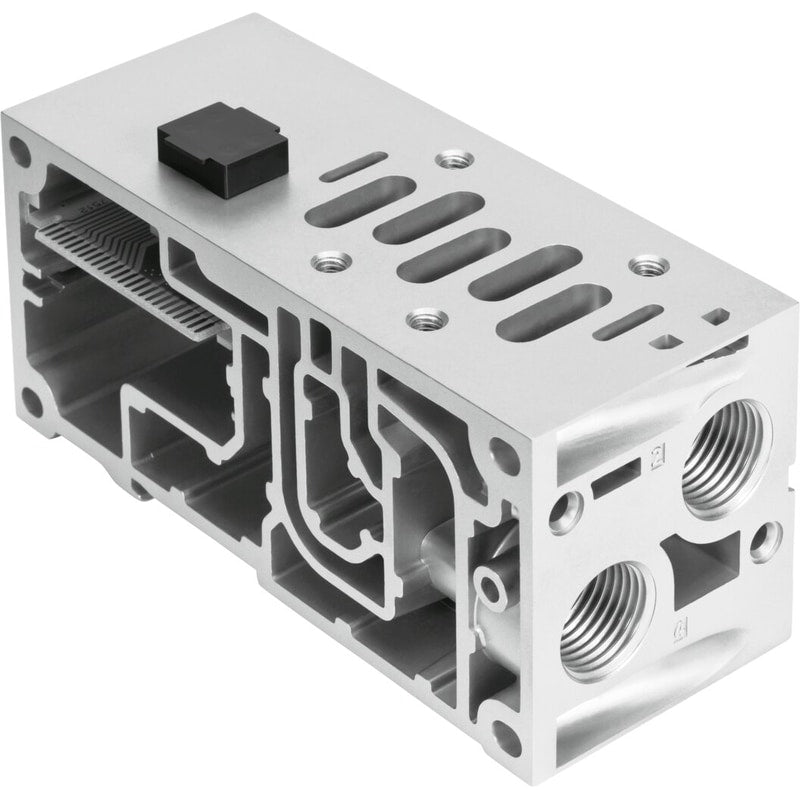

Manifold sub-base
VABV-S2-2S-G12-T2
560841
GTIN 4052568006129
Vendor Festo
Regular price
$138.06
Unit price
VABV-S2-2S-G12-T2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABV-S2-2S-G12-T2
Regular price
$138.06
Unit price
VABV-S2-2S-G12-T2 is backordered and will ship as soon as it is back in stock.
manifold sub-base VABV-S2-2S-G12-T2 Grid dimension=59 mm, Valve terminal type=44, Operating pressure=-0,9 - 10 bar, CE mark (see declaration of conformity)=to EU directive low-voltage devices, Corrosion resistance classification CRC=0 - No corrosion stress
| Grid dimension | 59 mm |
|---|---|
| Valve terminal type | 44 |
| Operating pressure | '-0.9 ... 10 bar |
| CE mark (see declaration of conformity) | to EU directive low-voltage devices |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Product weight | 610 g |
| Pneumatic connection, port 2 | G1/2 |
| Pneumatic connection, port 4 | G1/2 |
| Materials note | Conforms to RoHS |
| Material plate | Aluminium die cast |
