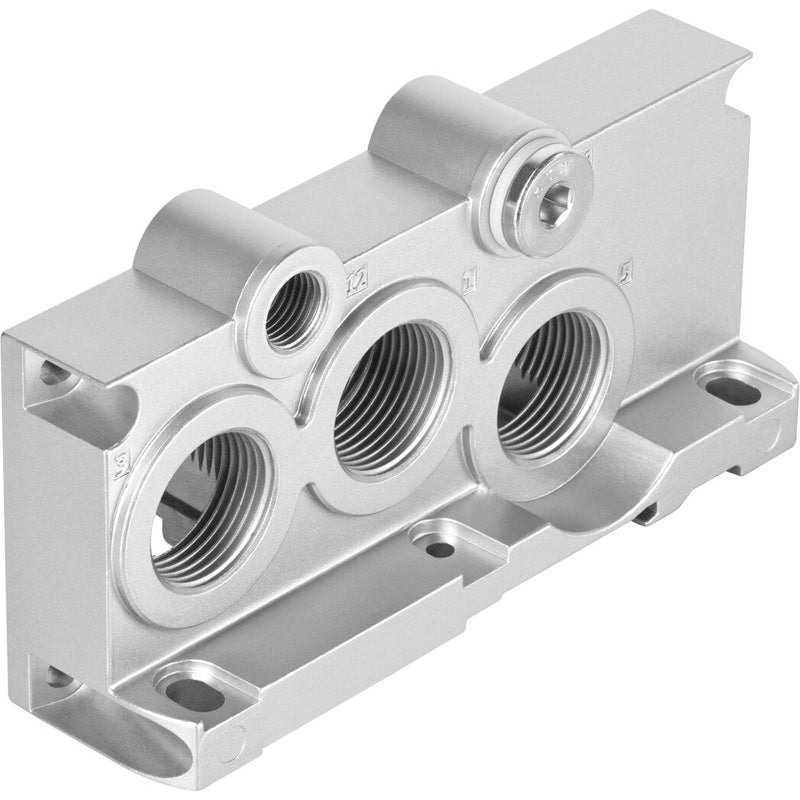

End plate
VABE-S6-2R-N34
560838
GTIN 4052568098360
Vendor Festo
Regular price
$46.48
Unit price
VABE-S6-2R-N34 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABE-S6-2R-N34
Regular price
$46.48
Unit price
VABE-S6-2R-N34 is backordered and will ship as soon as it is back in stock.
end plate VABE-S6-2R-N34 Based on the standard=ISO 5599-2, Assembly position=Any, Valve terminal type=44, Operating pressure=-0,9 - 10 bar, Corrosion resistance classification CRC=0 - No corrosion stress
| Based on the standard | ISO 5599-2 |
|---|---|
| Assembly position | Any |
| Valve terminal type | 44 |
| Operating pressure | '-0.9 ... 10 bar |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Product weight | 336 g |
| Pilot air port 12 | NPT1/4-18 |
| Pneumatic connection, port 1 | NPT3/4-14 |
| Pneumatic connection, port 3 | NPT3/4-14 |
| Pneumatic connection, port 5 | NPT3/4-14 |
| Materials note | Conforms to RoHS |
| Material end plate | Aluminium die cast |
