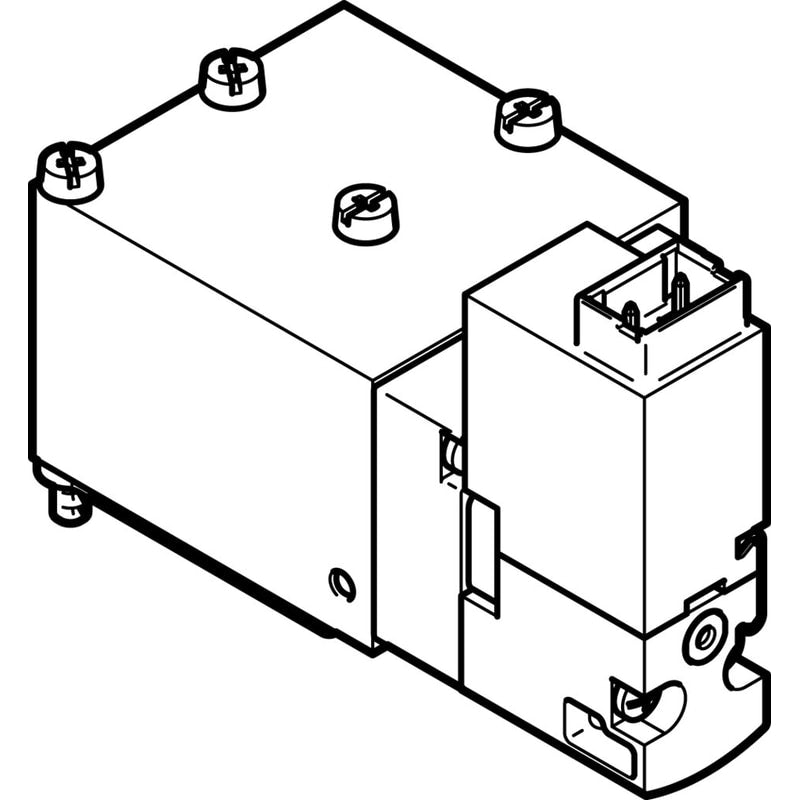

Air solenoid valve
VOVG-B12-M52Q-AH-F-1H3
560714
GTIN 4052568098353
Vendor Festo
- Valve function
- 5/2, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 180 l/min
- Pneumatic connection 1
- Sub-base
- Operating pressure
- 2 bar - 8 bar
Regular price
$139.89
Unit price
VOVG-B12-M52Q-AH-F-1H3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VOVG-B12-M52Q-AH-F-1H3
Regular price
$139.89
Unit price
VOVG-B12-M52Q-AH-F-1H3 is backordered and will ship as soon as it is back in stock.
solenoid valve VOVG-B12-M52Q-AH-F-1H3 Valve function=5/2 monostable, Type of actuation=electrical, Width=25 mm, Standard nominal flow rate=180 l/min, Operating pressure=2 - 8 bar
| Valve function | 5/2 monostable |
|---|---|
| Type of actuation | electrical |
| Width | 25 mm |
| Standard nominal flow rate | 180 l/min |
| Operating pressure | 2 ... 8 bar |
| Design structure | Piston slide |
| Type of reset | Air spring |
| Protection class | IP40 |
| Nominal size | 2.1 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | Pushing |
