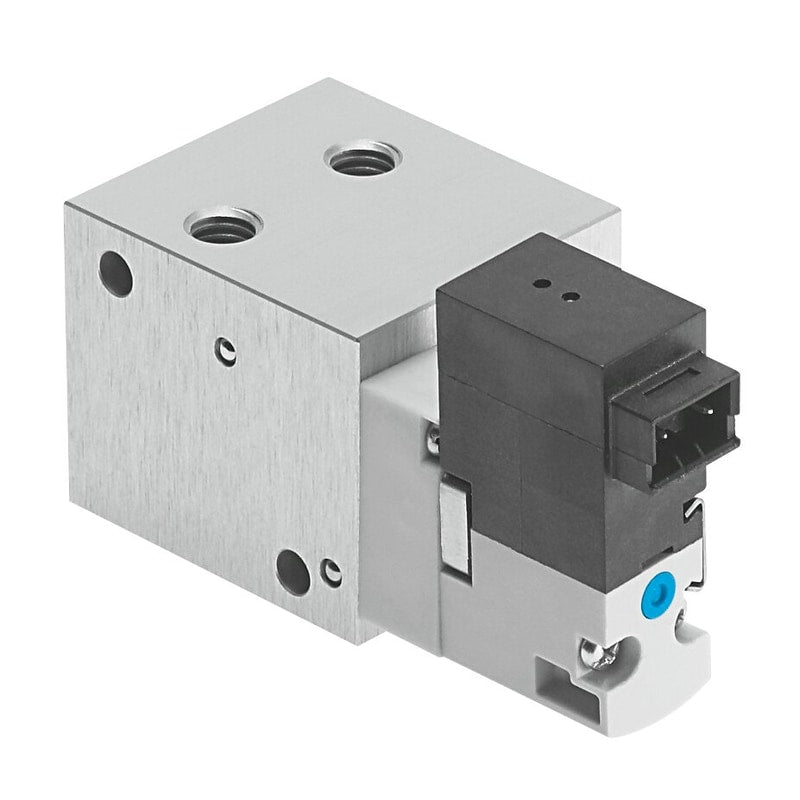

Air solenoid valve
VOVG-S12-M52Q-AH-M5-1H2
560707
GTIN 4052568207540
Vendor Festo
- Valve function
- 5/2, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 180 l/min
- Pneumatic connection 1
- Sub-base
- Operating pressure
- 2 bar - 8 bar
Regular price
$150.74
Unit price
VOVG-S12-M52Q-AH-M5-1H2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VOVG-S12-M52Q-AH-M5-1H2
Regular price
$150.74
Unit price
VOVG-S12-M52Q-AH-M5-1H2 is backordered and will ship as soon as it is back in stock.
solenoid valve VOVG-S12-M52Q-AH-M5-1H2 Valve function=5/2 monostable, Type of actuation=electrical, Width=25 mm, Standard nominal flow rate=180 l/min, Operating pressure=2 - 8 bar
| Valve function | 5/2 monostable |
|---|---|
| Type of actuation | electrical |
| Width | 25 mm |
| Standard nominal flow rate | 180 l/min |
| Operating pressure | 2 ... 8 bar |
| Design structure | Piston slide |
| Type of reset | Air spring |
| Protection class | IP40 |
| Nominal size | 2.1 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | Pushing |
