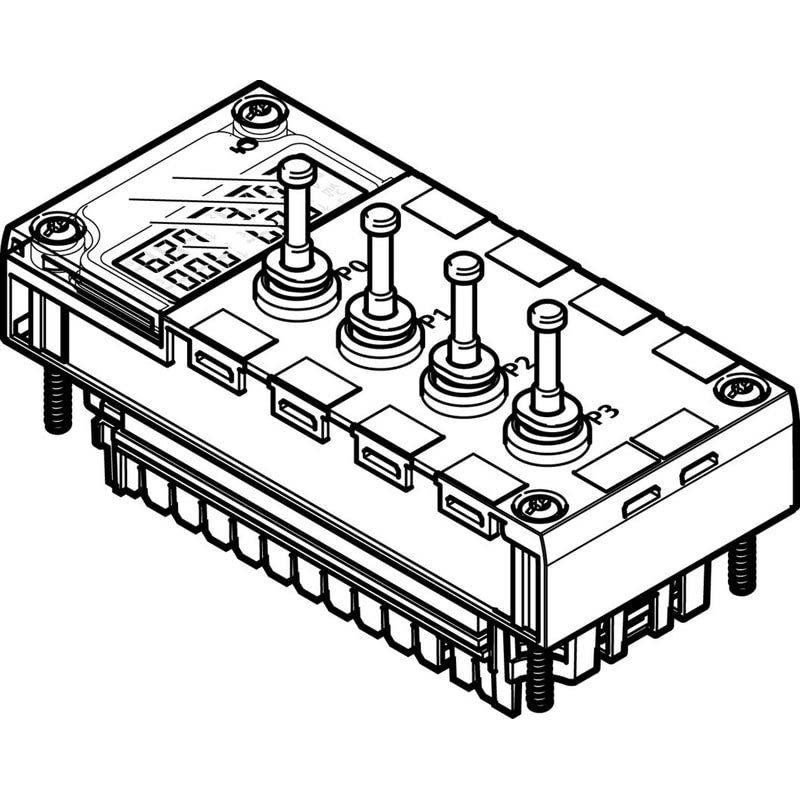

CPX-4AE-P-D10

analogue module CPX-4AE-P-D10 Dimensions W x L x H=(* (including interlinking block), * 50 mm x 107 mm x 55 mm), No. of inputs=4, Diagnosis=(* - Limit value violation per channel, * - Parameterisation error, * - Sensor limit per channel), Parameters configuring=(* - Diagnosis delay per channel, * - Hysteresis per module, * - Unit of measurement, * - Measured value smoothing per channel, * - Diagnosis limit monitoring per channel, * - Diagnostics sensor limit per channel, * - Relative/differential pressure measurement), Measured variable=4x relative pressure/2x differential pressure

Dimensions W x L x H	(including interlinking block)50 mm x 107 mm x 55 mm
No. of inputs	4
Diagnosis	'- Limit value violation per channel- Parameterisation error- Sensor limit per channel
Parameters configuring	'- Diagnosis delay per channel- Hysteresis per module- Unit of measurement- Measured value smoothing per channel- Diagnosis limit monitoring per channel- Diagnostics sensor limit per channel- Relative/differential pressure measurement
Measured variable	4x relative pressure/2x differential pressure
Unit(s) that can be displayed	kPambarpsi
LED displays	'- 1 Group diagnosis
Internal cycle time	5 ms
Operating voltage range DC	18 ... 30 V
Intrinsic current consumption at operating voltage	Typically 50 mA
Nominal operating voltage DC	24 V
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (subsequently required for further operation)
