Air solenoid valve
CPV10-M1H-2X3-OLS-K-M7
559641
GTIN 4052568206208
Vendor Festo
- Valve function
- 2x3/2, open, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 400 l/min
- Pneumatic connection 1
- Common port with pressure separation
- Actuation type
- Electrical
Regular price
$245.29
Unit price
CPV10-M1H-2X3-OLS-K-M7 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPV10-M1H-2X3-OLS-K-M7
Regular price
$245.29
Unit price
CPV10-M1H-2X3-OLS-K-M7 is backordered and will ship as soon as it is back in stock.

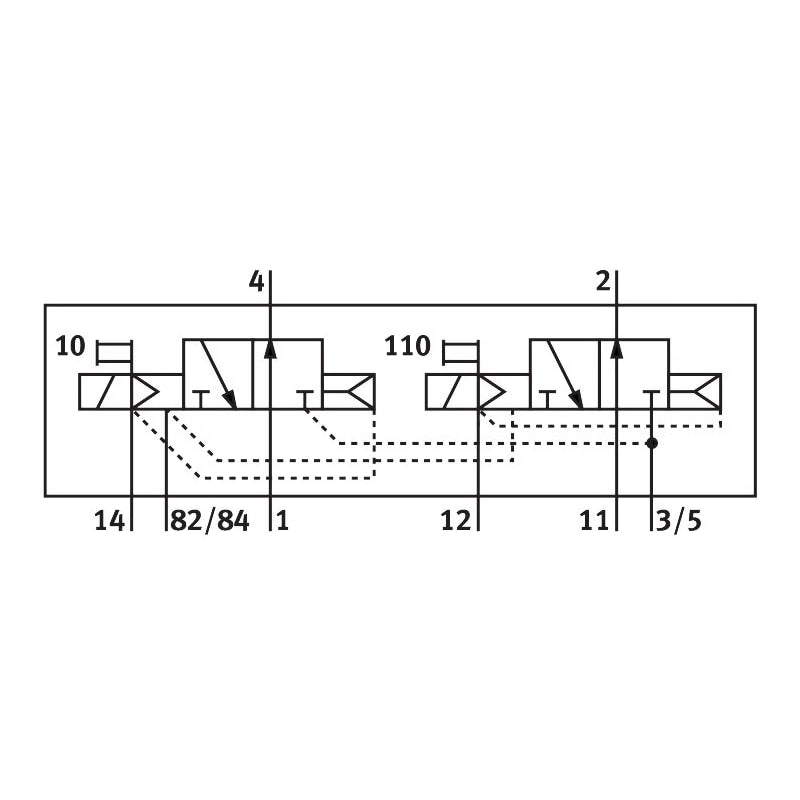

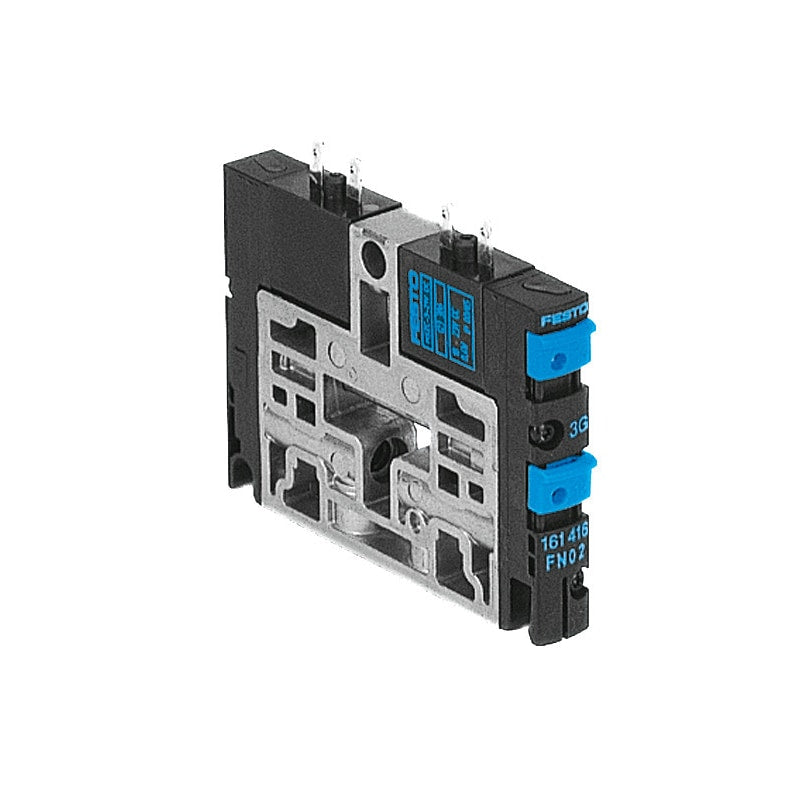

solenoid valve CPV10-M1H-2X3-OLS-K-M7 For valve terminal CPV. The valve housing contains two 3/2-way valves, both of which are normally open. Valve function=2x3/2 open, monostable, Type of actuation=electrical, Valve size=10 mm, Standard nominal flow rate=400 l/min, Operating pressure=-0,9 - 10 bar
| Valve function | 2x3/2 open, monostable |
|---|---|
| Type of actuation | electrical |
| Valve size | 10 mm |
| Standard nominal flow rate | 400 l/min |
| Operating pressure | '-0.9 ... 10 bar |
| Design structure | Piston slide |
| Type of reset | Air spring |
| Protection class | IP65 |
| Nominal size | 4 mm |
| Exhaust-air function | not throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | detentingPushing |
