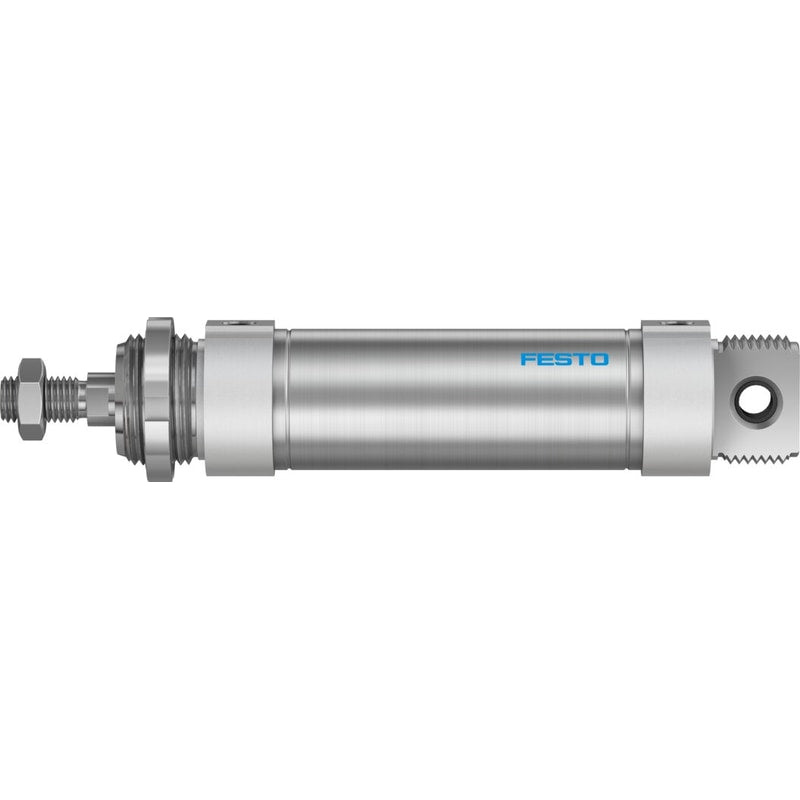

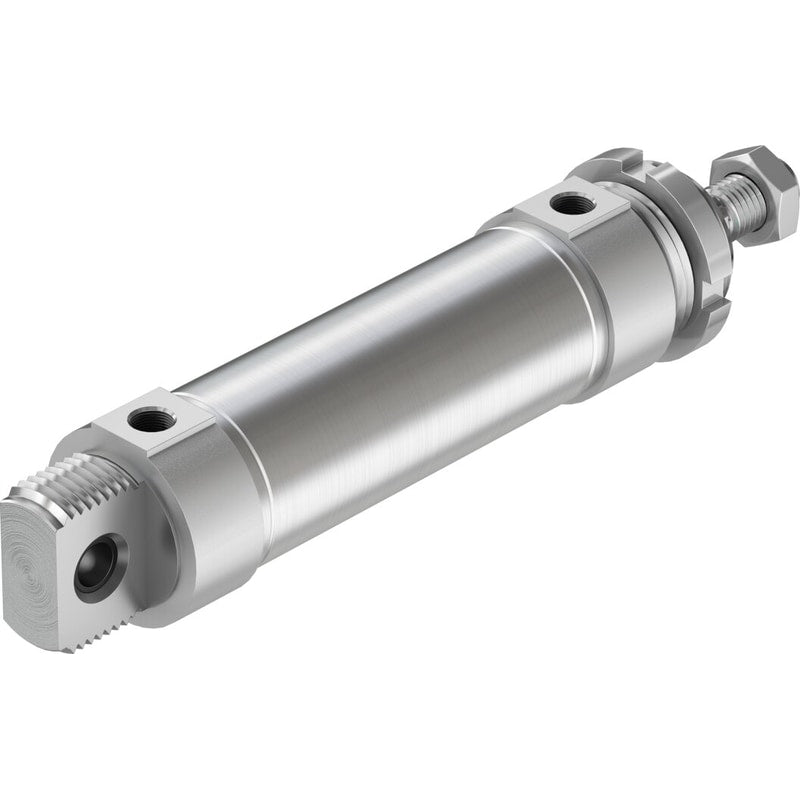

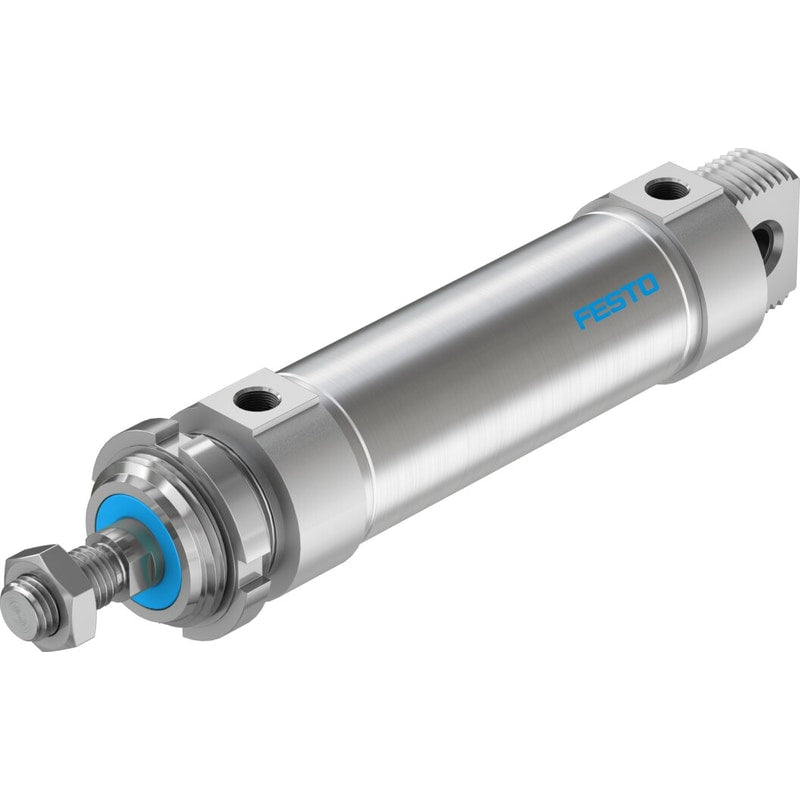

Round cylinder
DSNU-50-100-PPS-A
559319
GTIN 4052568205959
Vendor Festo
- Mode of operation
- Double-acting
- Piston diameter
- 50 mm
- Theoretical force at 6 bar, advancing
- 1178.1 N
- Stroke
- 100 mm
- Cushioning
- Self-adjusting pneumatic end-position cushioning
Regular price
$145.15
Unit price
DSNU-50-100-PPS-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DSNU-50-100-PPS-A
Regular price
$145.15
Unit price
DSNU-50-100-PPS-A is backordered and will ship as soon as it is back in stock.
round cylinder DSNU-50-100-PPS-A with self-adjusting pneumatic end position cushioning Stroke=100 mm, Piston diameter=50 mm, Piston rod thread=M16x1,5, Cushioning=PPS: Self-adjusting pneumatic end-position cushioning, Assembly position=Any
| Stroke | 100 mm |
|---|---|
| Piston diameter | 50 mm |
| Piston rod thread | M16x1,5 |
| Cushioning | PPS: Self-adjusting pneumatic end-position cushioning |
| Assembly position | Any |
| Design structure | PistonPiston rodCylinder barrel |
| Position detection | For proximity sensor |
| Operating pressure | 1 ... 10 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Ambient temperature | '-20 ... 80 °C |
