ISO cylinder
DSNU-20-300-PPS-A
559280
GTIN 4052568205584
Vendor Festo
- Mode of operation
- Double-acting
- Piston diameter
- 20 mm
- Theoretical force at 6 bar, advancing
- 188.5 N
- Stroke
- 300 mm
- Cushioning
- Self-adjusting pneumatic end-position cushioning
Regular price
$84.81
Unit price
DSNU-20-300-PPS-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DSNU-20-300-PPS-A
Regular price
$84.81
Unit price
DSNU-20-300-PPS-A is backordered and will ship as soon as it is back in stock.

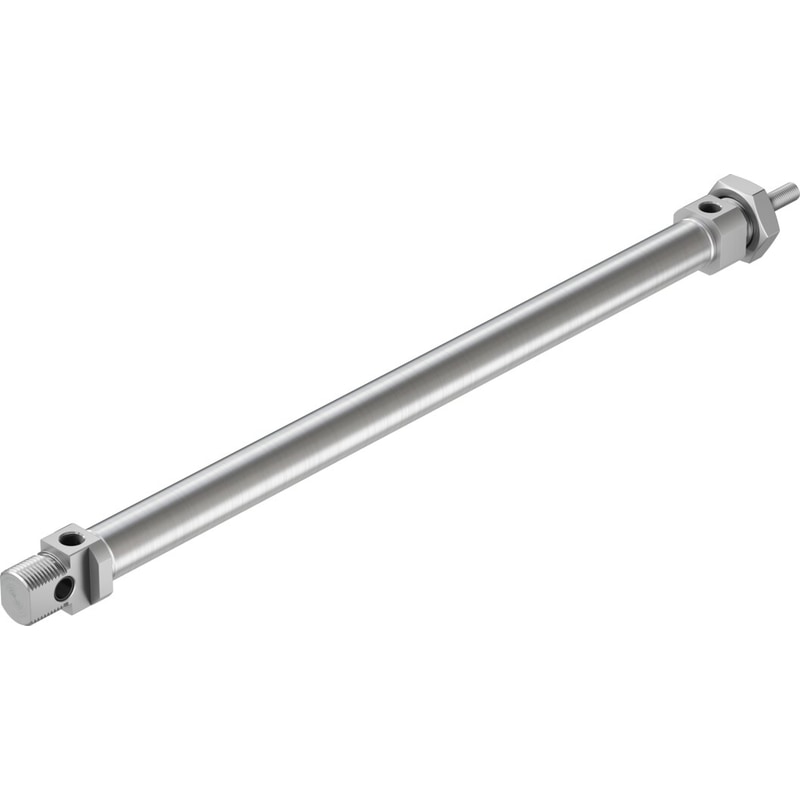

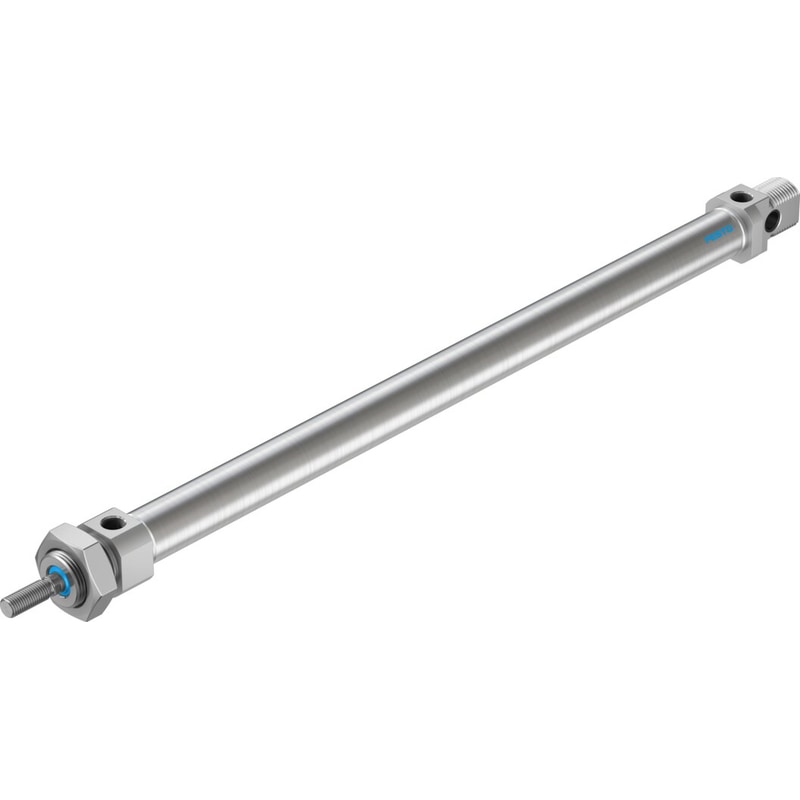

ISO cylinder DSNU-20-300-PPS-A with self-adjusting pneumatic end position cushioning Stroke=300 mm, Piston diameter=20 mm, Piston rod thread=M8, Cushioning=PPS: Self-adjusting pneumatic end-position cushioning, Assembly position=Any
| Stroke | 300 mm |
|---|---|
| Piston diameter | 20 mm |
| Piston rod thread | M8 |
| Cushioning | PPS: Self-adjusting pneumatic end-position cushioning |
| Assembly position | Any |
| Conforms to standard | CETOP RP 52 PISO 6432 |
| Piston-rod end | Male thread |
| Design structure | PistonPiston rodCylinder barrel |
| Position detection | For proximity sensor |
| Variants | Single-ended piston rod |
| Operating pressure | 1 ... 10 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
