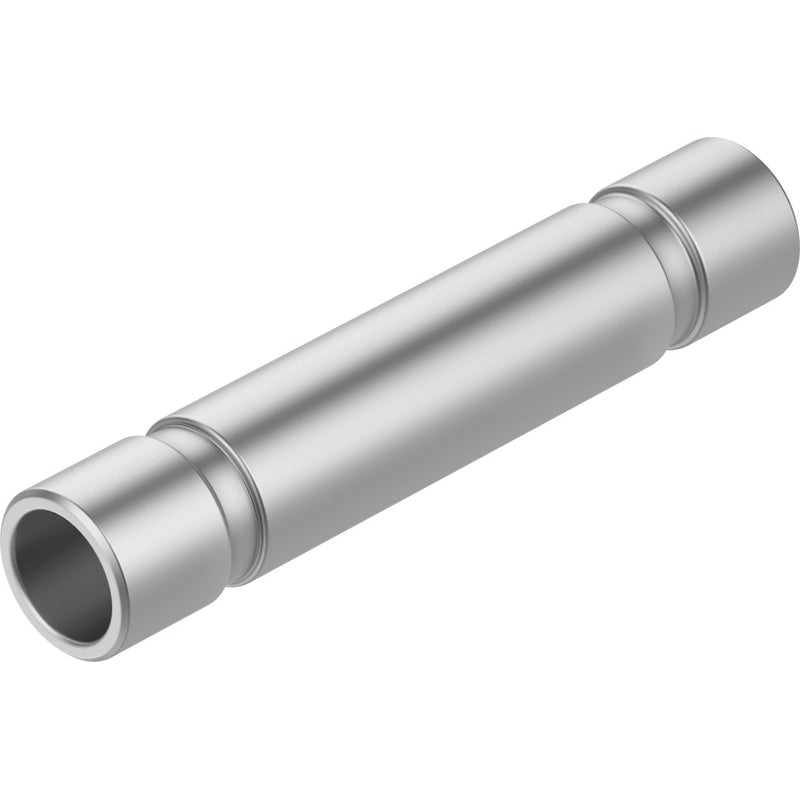

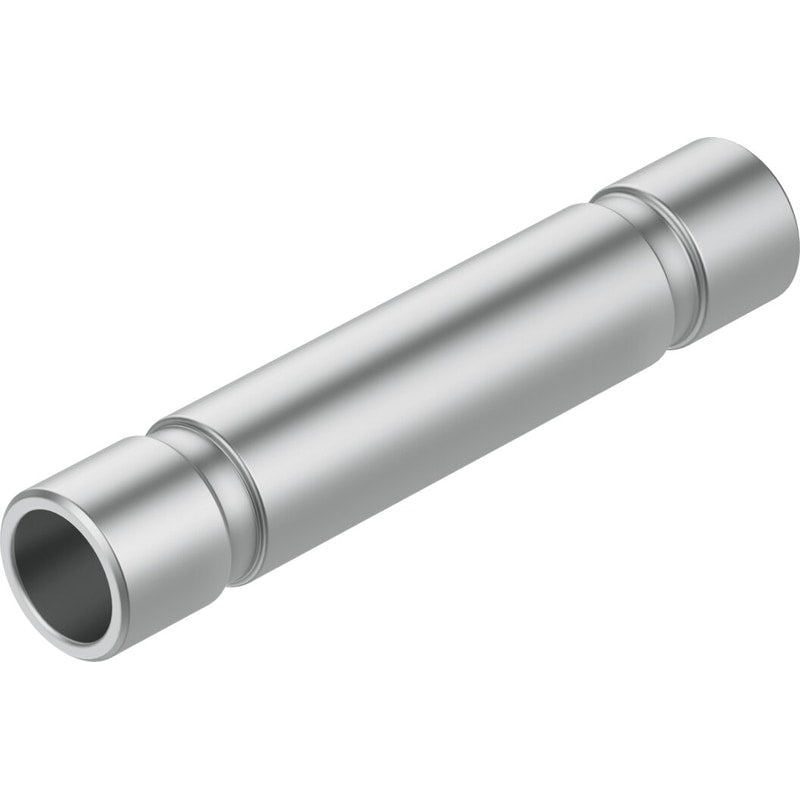

Push-in sleeve
NPQM-D-S12-E-P10
558815
GTIN 4052568055493
Vendor Festo
- Pneumatic connection 1
- Push-in sleeve QS-12
- Pneumatic connection 2
- Push-in sleeve QS-12
- Operating pressure for entire temperature range
- -0.95 bar - 16 bar
- Ambient temperature
- -20 °C - 70 °C
- Nominal width
- 10 mm
Regular price
$5.45
Unit price
NPQM-D-S12-E-P10 Push-in sleeve is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NPQM-D-S12-E-P10
Regular price
$5.45
Unit price
NPQM-D-S12-E-P10 Push-in sleeve is backordered and will ship as soon as it is back in stock.
| Size | Standard |
|---|---|
| Nominal width | 10 mm |
| Type code | NPQM-D |
| Operating pressure for entire temperature range | -0.95 bar ... 16 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Ambient temperature | -20 °C ... 70 °C |
| Product weight | 14 g |
| Pneumatic connection 1 | Push-in sleeve QS-12 |
| Note on materials | RoHS-compliant |
| Housing material | Brass, nickel-plated |
