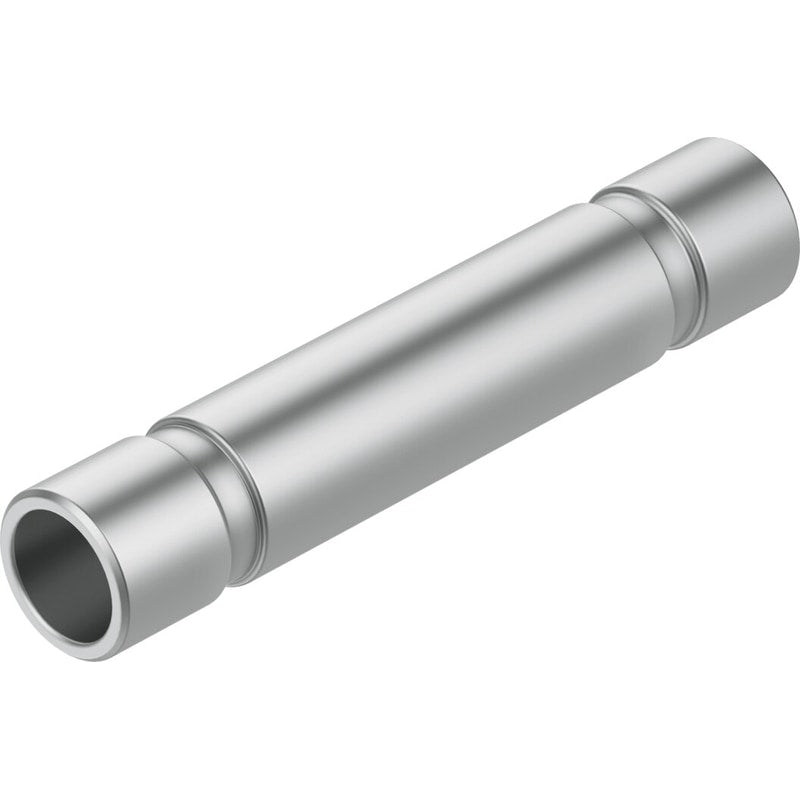

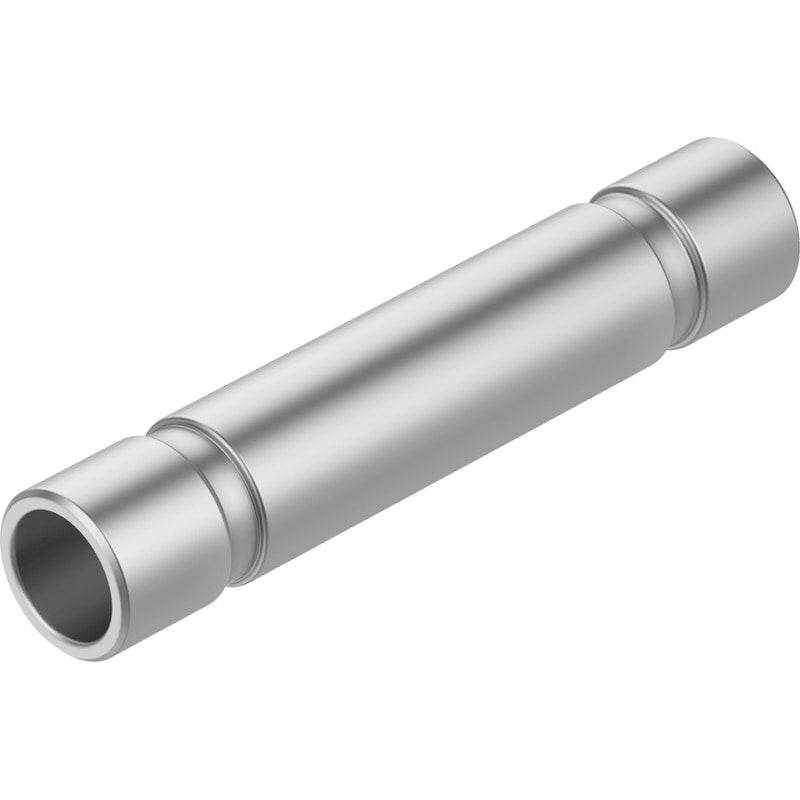

Push-in sleeve
NPQM-D-S6-E-P10
558812
GTIN 4052568055462
Vendor Festo
- Pneumatic connection 1
- Push-in sleeve Ø 6 mm
- Pneumatic connection 2
- Push-in sleeve QS-6
- Operating pressure for entire temperature range
- -0.95 bar - 16 bar
- Ambient temperature
- -20 °C - 70 °C
- Nominal width
- 4 mm
Regular price
$3.34
Unit price
NPQM-D-S6-E-P10 Push-in sleeve is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NPQM-D-S6-E-P10
Regular price
$3.34
Unit price
NPQM-D-S6-E-P10 Push-in sleeve is backordered and will ship as soon as it is back in stock.
push-in sleeve NPQM-D-S6-E-P10 Size=Standard, Nominal size=4 mm, Operating pressure complete temperature range=-0,95 - 16 bar, Operating medium=(* Compressed air in accordance with ISO8573-1:2010 [7:-:-], * Water as per manufacturer's declaration at www.festo.com), Note on operating and pilot medium=Lubricated operation possible
| Fitting Type | n/a |
|---|---|
| Size | Standard |
| Nominal size | 4 mm |
| Operating pressure complete temperature range | '-0.95 ... 16 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-20 ... 70 °C |
| Product weight | 5.5 g |
| connection 1 | Push-in sleeve QS-6 |
| Materials note | Conforms to RoHS |
| Material housing | Nickel-plated brass |
